VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Los Angeles, CA | Meridian Windows & Doors

The VLX 100 Swing / Entry Door is a modern aluminum entry door built for homeowners who want clean, minimal lines without giving up security or weather performance. It’s a single-entry door with a slim 2.56″ profile frame and a multi-point locking system that feels substantial when it closes. Meridian Windows & Doors is an authorized ViewLux installation partner serving Los Angeles, CA, and we install this door to factory spec so the warranty stays intact. If you’re researching this product for a new build or a replacement project, call us at (817) 686-2228 for a free on-site measurement and line-item quote.

Call (817) 686-2228

Product Overview – VLX 100 Swing / Entry Door

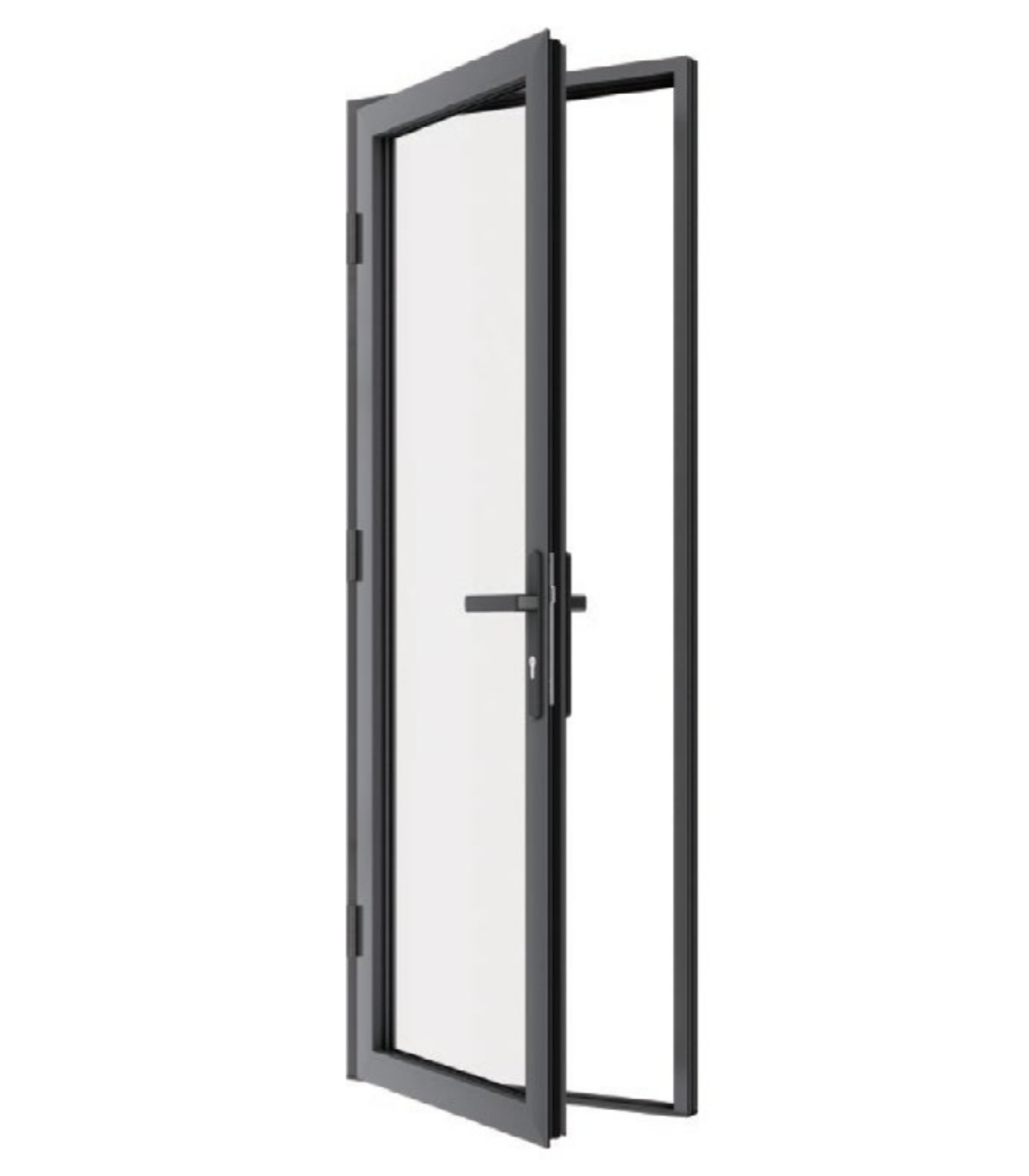

The VLX 100 Swing / Entry Door from ViewLux is a modern aluminum swing door designed as a single entry with a minimalist frame and multi-point locking. The appeal is in the proportions. At 2.56 inches wide, the profile is narrow enough to maximize glass area while still carrying the structural rigidity aluminum is known for. That means more daylight in the entryway, a sharper sightline from the curb, and a door that doesn’t warp, swell, or sag the way wood doors do over time.

This door series is commonly specified for contemporary and mid-century-modern homes throughout Los Angeles, from the hillside properties in Silver Lake and Echo Park to new builds in Playa Vista and Culver City. But we’ve also installed it on Spanish-style homes in the San Fernando Valley where the clean frame provides a deliberate contrast against stucco and clay tile. The multi-point locking hardware engages at multiple points along the frame when you lift the handle, not just a single deadbolt at waist height. That detail matters to Los Angeles homeowners who travel frequently or want real security at the primary entry.

The aluminum extrusion is robust but not bulky. The door carries a maximum span of up to 48 inches wide, which gives architects flexibility for wider single-door openings without jumping to a double-door system. It’s a good fit for oversized openings in new construction and for remodels where the existing rough opening needs to be widened. When we install the VLX 100 in Los Angeles, we set it level, plumb, and square so the multi-point lock engages cleanly every time. That’s the difference between a door that feels crisp at year five and one that needs adjustment by year two.

Technical Specifications

Here are the core specifications for the VLX 100 Swing / Entry Door as we configure and install it in Los Angeles. These numbers represent the production values from ViewLux, and we work within them to ensure every installation is warranty-safe.

Every VLX 100 we order is built to the homeowner’s specific rough opening dimensions. We don’t stock standard sizes and hope they fit. We measure, confirm with the manufacturer, and order once the numbers check out. That prevents the field modifications that end up compromising the factory finish or the weather seal.

Performance Features

Thermal Efficiency
The VLX 100 uses a thermal break inside the aluminum frame to interrupt heat transfer between the exterior and interior. In Los Angeles, that means less heat gain on the west-facing entries we see in neighborhoods like Woodland Hills and Tarzana during summer afternoons. Choose Low-E glass and you get additional solar control, which keeps the entry hall comfortable and helps hold the indoor temperature steady. NFRC-rated performance data is available for the exact glass package on your door.

Acoustic Performance
Aluminum frames paired with laminated glass can meaningfully reduce exterior noise. We’ve had clients near Ventura Boulevard, the 101 corridor, and LAX flight paths ask specifically about sound reduction at the entry door, and the VLX 100 handles that well when configured with laminated glass. The same interlayer that blocks forced entry also dampens mid-range and high-frequency noise better than single-pane glass.

Airtightness & Weather Seal
The multi-point locking system does more than secure the door. It compresses the door leaf against the weather stripping at multiple points around the perimeter, which is a big advantage over a single deadbolt that only seals at one latch point. Combined with a properly set frame, the VLX 100 keeps conditioned air in and dust out. That matters during Santa Ana wind events when fine dust gets driven against exterior doors across Los Angeles.

Waterproofing
This door is engineered to keep water where it belongs, on the outside. The frame includes an integrated drainage system that channels any water that gets past the outer gasket away from the threshold. On installation, we follow the AAMA 812 standard and lay low-expansion foam on all perimeter joints, then seal the exterior with a high-quality sealant. That dual barrier approach prevents water intrusion at the door-to-wall interface, which is where most leak failures actually originate, not in the door itself.

Wind Resistance
ViewLux wind-load rates the VLX 100 for local climate requirements, and the door can be configured with impact-resistant laminated glass when the property calls for it. If you’re in a hillside or canyon area of Los Angeles where wind speeds are higher than the basin, tell us at the quote stage. We’ll verify the wind-load rating for your specific opening size and exposure and order the glass package that meets it.

Security & Hardware

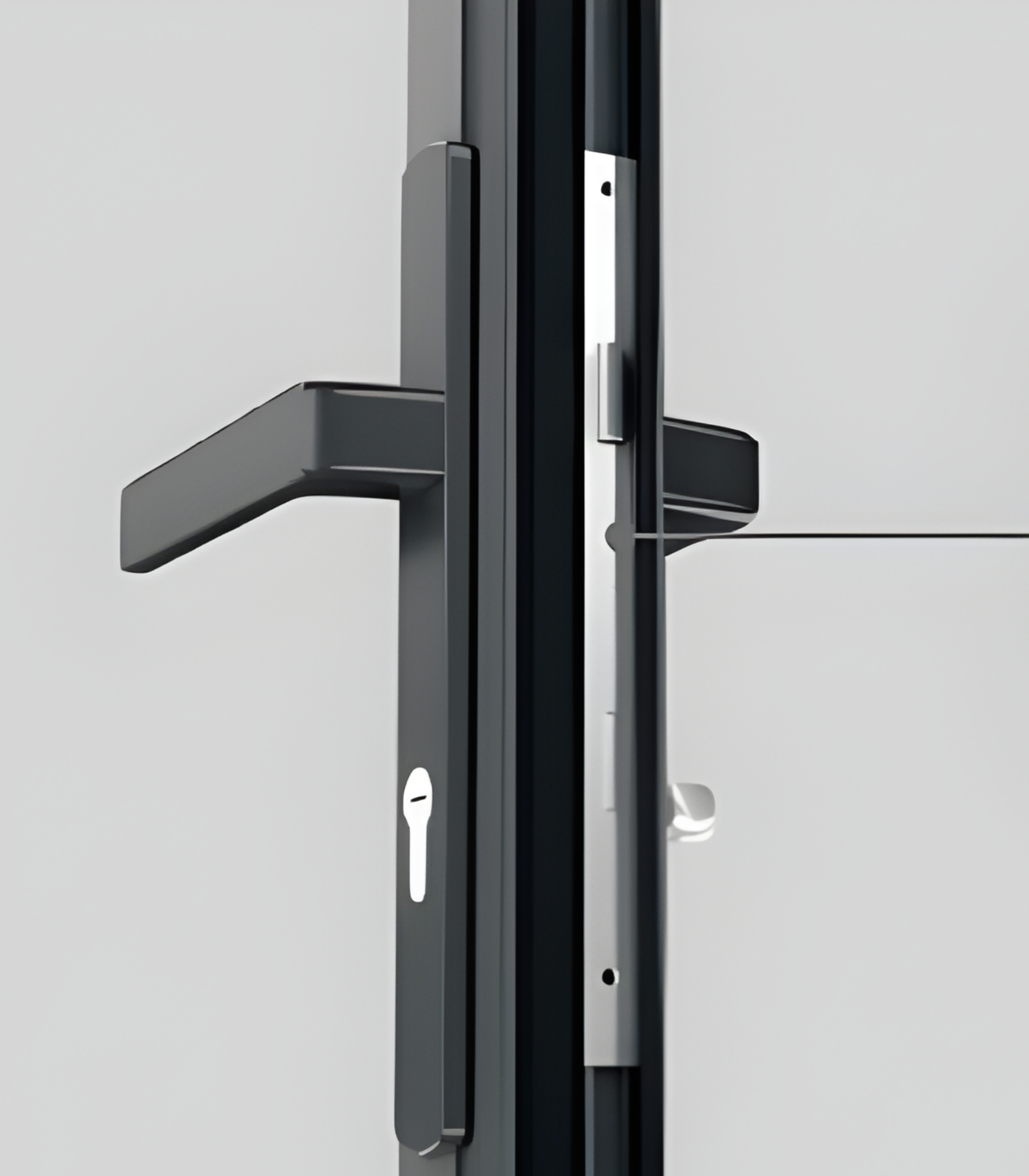

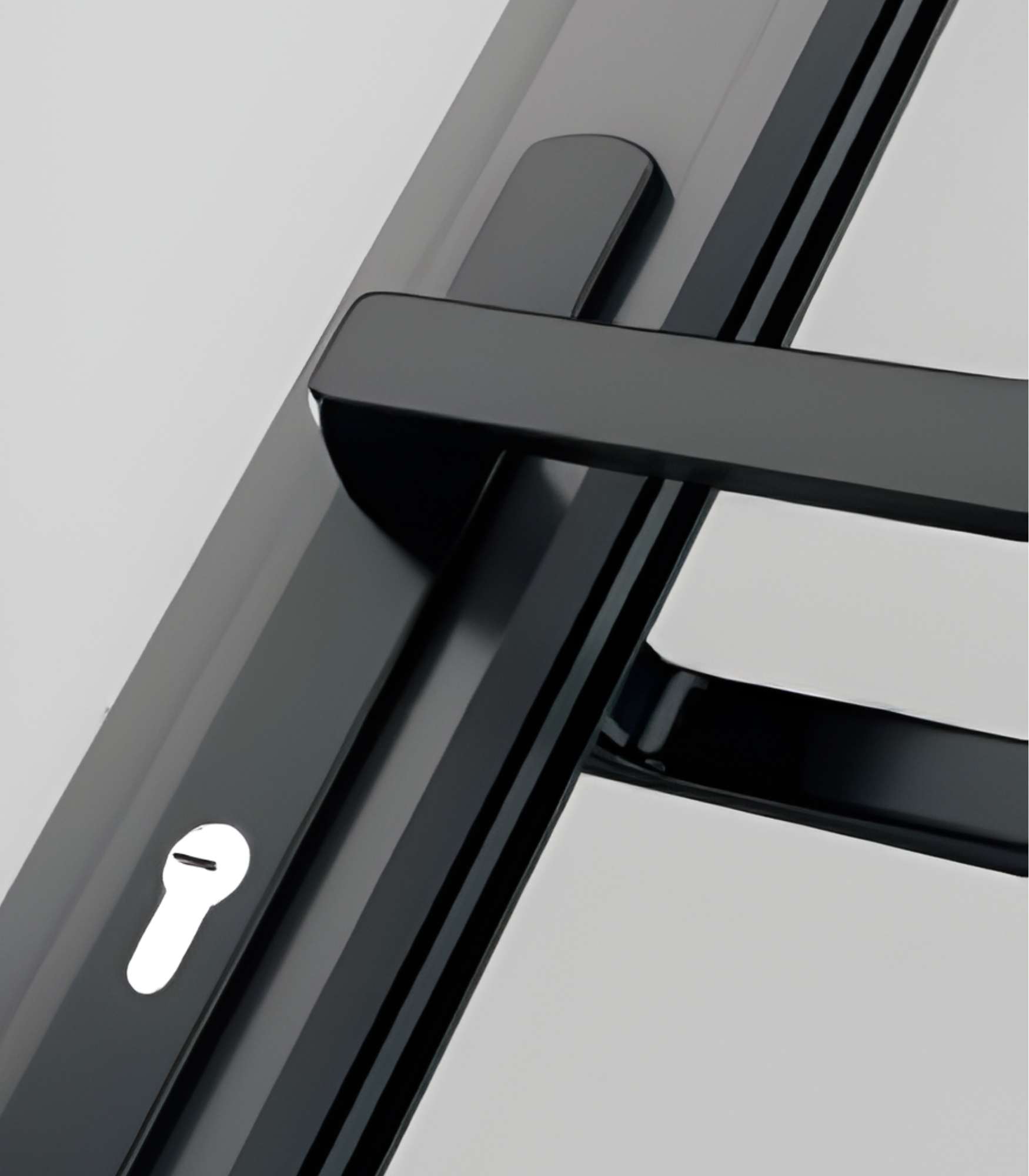

The multi-point lock on the VLX 100 engages at the top, center, and bottom of the door leaf with a single handle lift. That’s three points of contact against the frame compared to one. For Los Angeles homeowners, this is a meaningful upgrade over a standard lockset, and it’s part of what makes this door series so popular. The laminated glass option adds another layer of forced-entry resistance, not to mention protection from flying debris.

Color & Glass Options

The VLX 100 comes in six factory finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Premium Black is the most requested finish we see in Los Angeles right now, especially on modern and transitional homes where dark window frames are already part of the exterior design language. Pure White reads clean against white stucco and suits California-coastal and Spanish-revival entries. Anodized Silver has a raw, industrial quality that works on lofts and contemporary structures. Bronze and Champagne are quieter finishes that bridge modern and traditional styles without drawing attention to the frame. Teak Wood is a woodgrain-look finish for homeowners who want the warmth of wood with the zero-maintenance reality of aluminum.

Glass options include Clear, Frosted, Obscure, Low-E, Tempered, and Laminated. Clear glass maximizes light and visibility. Frosted and Obscure give you privacy at the entry while still letting daylight through, which is useful on a front door that faces the street. Low-E is the energy-efficiency upgrade we recommend for most Los Angeles installs because it reduces solar heat gain during long summers. Tempered glass is a safety requirement for full-lite doors in most applications. Laminated glass adds impact resistance and sound control. You can also add a retractable screen to the VLX 100, which is a good option for Los Angeles homes that want cross-ventilation without an unsightly fixed screen door.

Installation by Meridian Windows & Doors in Los Angeles

Installation is where a great door becomes a long-term problem or a long-term asset. We’ve rebuilt enough poorly installed entry doors across Los Angeles to know the failure patterns. Doors that were set out of square, frames that were shimmed with scraps, perimeter joints that were sealed with whatever caulk was in the truck. The result is a door that binds, a lock that won’t engage, a frame that leaks at the first real rain. That’s why we install every VLX 100 to the AAMA 2400/2410 standard and follow the AAMA 812 specification for low-expansion foam on all perimeter joints.

Our process starts with a pre-install inspection of the rough opening. We check the framing for square, confirm the rough opening dimensions against the order, and verify that the substrate is sound. If the opening needs correction, we address it before the door arrives. On install day, we remove the old door, set the new frame level, plumb, and square in the opening, and shim at the correct anchor points. The door gets anchored through the frame into the wall structure, not just nailed into trim. Then we foam the full perimeter with low-expansion foam per AAMA 812, which seals the air gap and kills the thermal bridge at the interface. After the foam cures, we trim it flush, apply the exterior sealant, and set the door hardware.

Every installation ends with a water test and an operation check. We run water around the threshold and side jambs, swing the door through its full range, and confirm the multi-point lock engages at all points without forcing. Cleanup includes hauling the old door and all packaging. Homeowners in Los Angeles should know that improper installation voids the ViewLux manufacturer warranty. Professional installation doesn’t just protect the product, it protects your investment. We’ve been doing this long enough to know that the details at the rough opening matter more than anything you see in a showroom.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Los Angeles

The VLX 100 is a long-term upgrade to the most used opening in your home. If you’re in Los Angeles, CA and you’re ready to price this door for your entry, let’s start with a free on-site measurement. We’ll bring finish and glass samples, confirm your rough opening, and give you a written line-item quote with no surprises. Call Meridian Windows & Doors at (817) 686-2228 or send us your project details and we’ll get back to you within one business day.

Written by the team at Meridian Windows & Doors, authorized ViewLux installation partner serving Los Angeles, CA.
