VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Los Angeles, CA | Meridian Windows & Doors

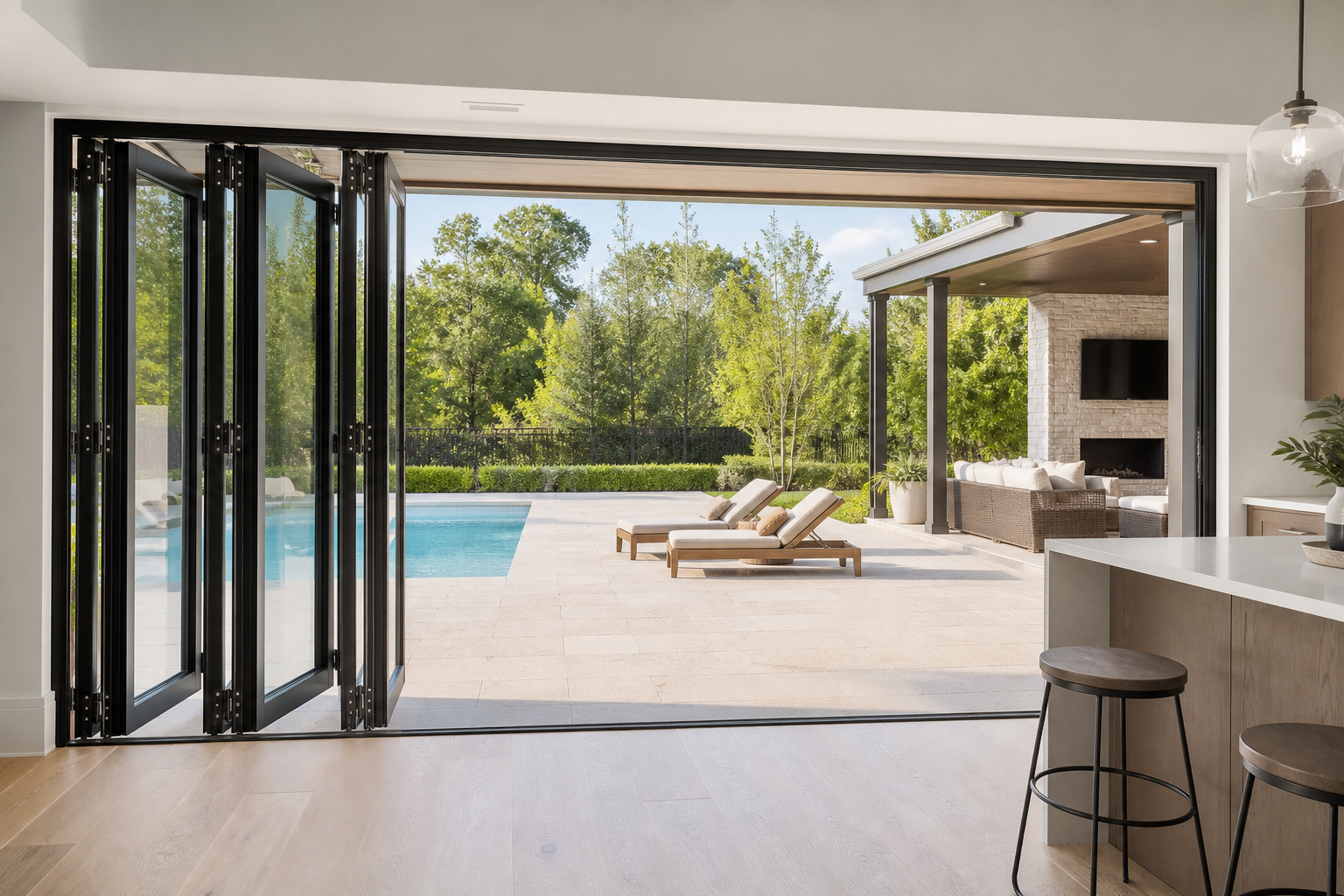

The VLX 100 bifold door turns a closed wall into an open-air passage. It’s an accordion-style aluminum door system that stacks panel by panel to create an opening up to 20 feet wide, so your living room, kitchen, or patio becomes one uninterrupted space. For Los Angeles homeowners, this is the difference between a house that feels boxed in and one that opens to a hillside view, a canyon breeze, or a backyard pool. Meridian Windows & Doors is an authorized ViewLux partner serving Los Angeles and surrounding neighborhoods, which means you get factory-backed product support and a local crew that installs it correctly the first time. Call (817) 686-2228 to talk specs, lead times, or pricing.

Call (817) 686-2228

Product Overview – VLX 100 Bifold / Folding Door

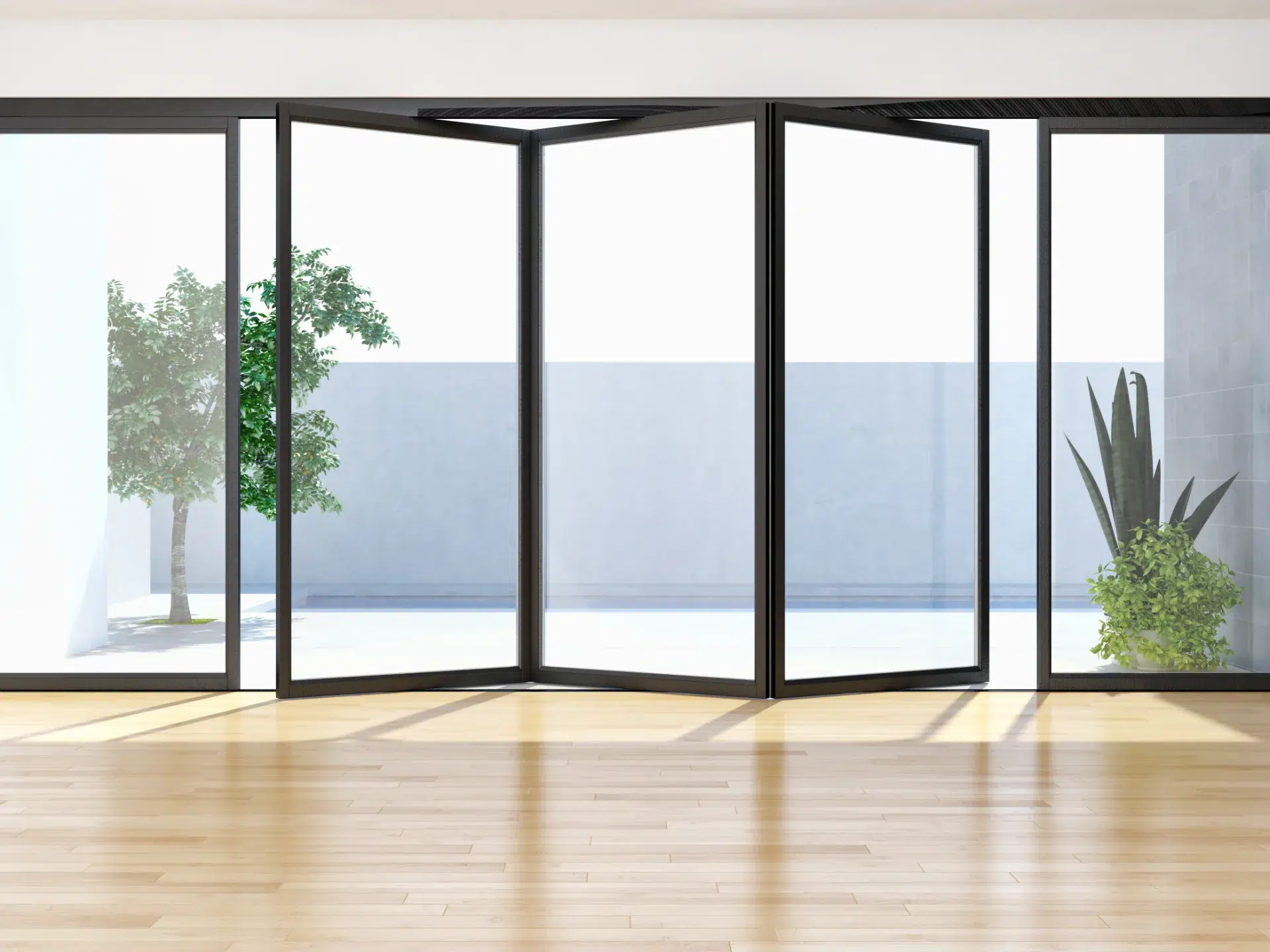

Accordion-style aluminum bifold doors exist for one reason: to remove the barrier between inside and out. The VLX 100 does this with real engineering behind it, not just sleek looks. Each panel folds flat against the next and stacks neatly at one or both ends, giving you a wall-to-wall opening with no center post obstructing the view. In a Los Angeles home, that means a dining room that flows directly onto a tiled terrace in Silver Lake, or a master bedroom that opens to a breeze-filled balcony in Pacific Palisades.

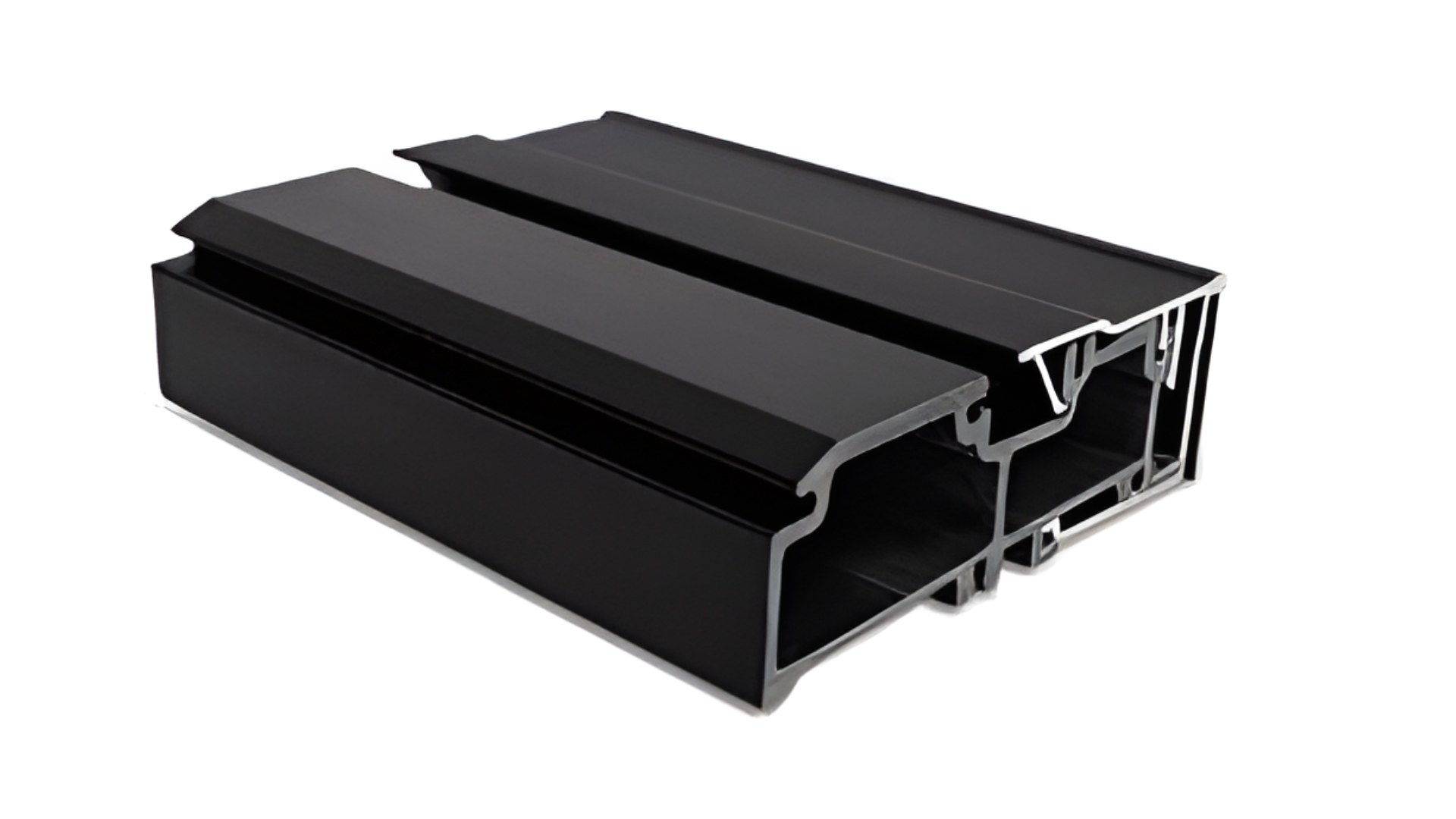

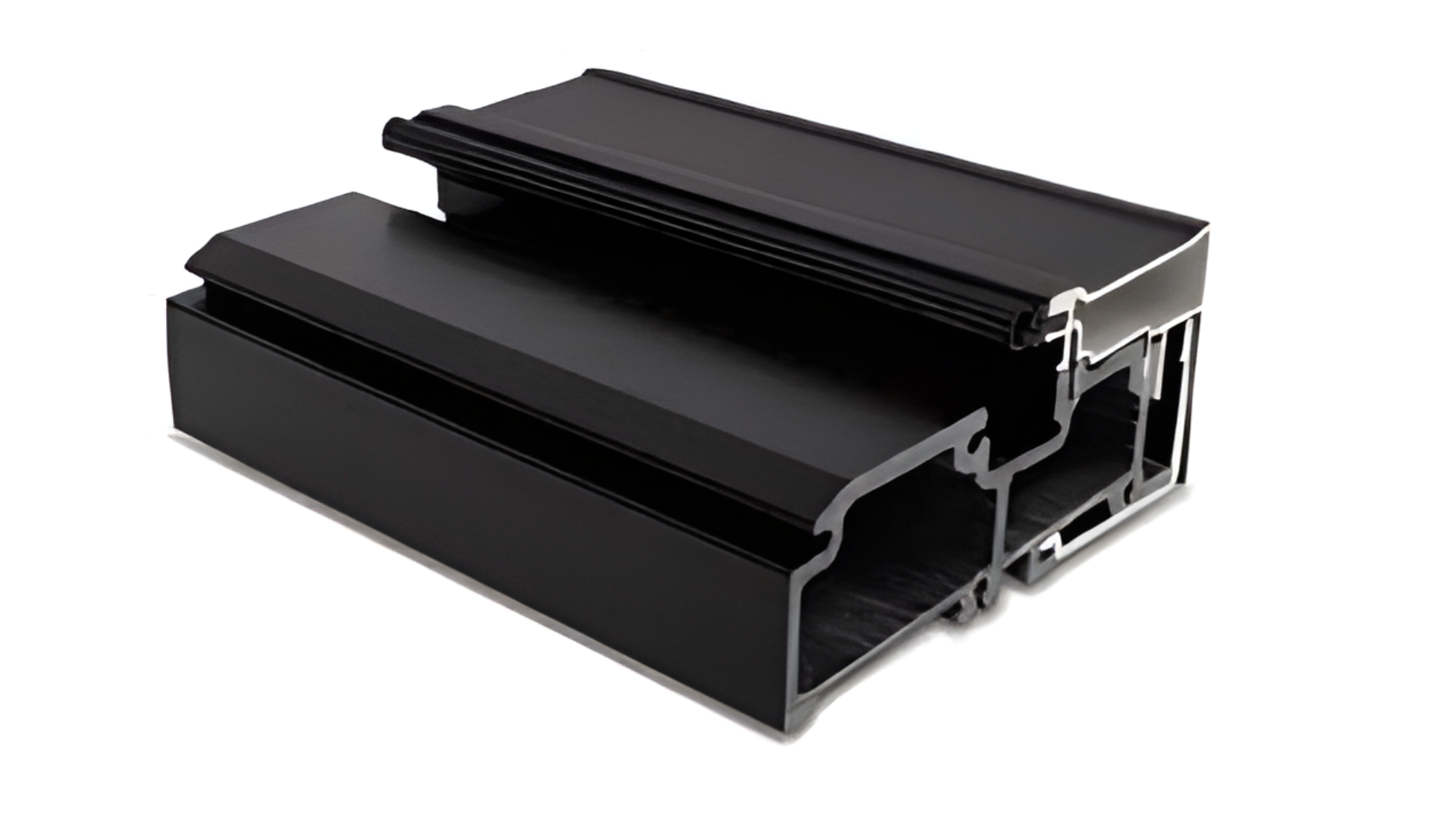

The frame is extruded aluminum with a wall thickness of 0.098 inches, which is substantial enough to keep panels rigid through years of daily use. The slim profile width of 2.56 inches keeps sightlines clean, so more glass and less frame shows. The engineering focus is longevity: corrosion-resistant aluminum construction handles coastal air in Malibu or Santa Monica without rusting or warping the way wood frames eventually do. Buyers choose this series over sliders or French doors when they want the full opening, the clean architectural line, and hardware that holds up.

Meridian Windows & Doors brings these doors into Los Angeles homes as an authorized ViewLux installation partner. That matters because the product and the install are the same commitment. A great door poorly installed is a drafty, misaligned problem. A great door installed to factory spec is a feature that adds resale value and daily comfort.

Technical Specifications

Here are the key VLX 100 specs, reworded from the factory data sheets so you know exactly what you’re getting.

• Frame construction: Extruded aluminum with a 0.098″ wall thickness for structural rigidity.
• Profile width: 2.56″ sightlines, slim enough for modern designs but strong enough for tall panels.
• Maximum span: Up to 20 feet wide, configurable as a 2-panel, 3-panel, 4-panel, 5-panel, or 6-panel track system.
• Glass types: Clear, Low-E, Tempered, Laminated, Gray Tint, and Black Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen options: Retractable screen or no screen, depending on climate and insect exposure.
• Performance standards: Thermal break technology with NFRC-rated energy data; AAMA 2400/2410 installation standard compliance; AAMA 812 low-expansion foam sealant used on all perimeter joints.

Every VLX 100 we order for a Los Angeles project is built to the opening dimensions you have, not reverse engineered from a stock size. That means fewer filler strips, fewer awkward gaps, and a cleaner finished look.

Performance Features

Thermal Efficiency – The VLX 100 uses thermal break technology inside the aluminum frame. This creates a barrier between the exterior face of the metal and the interior side, reducing heat transfer through the frame itself. In Los Angeles, where summer heat presses against west-facing glass, that break keeps the indoor side of the frame from turning into a radiator. NFRC-rated energy performance means you can check the actual numbers, not just marketing language.

Acoustic Performance – Aluminum bifold doors are not typically thought of as quiet, but the VLX 100 is better than you’d expect. The panels seat into a continuous weather strip around the perimeter, and the interlocking panel joints close tightly. That helps mute street noise on busy Los Angeles corners like Fairfax or Sunset. For the best sound reduction, choose laminated glass, which dampens vibration better than standard clear or Low-E options. We tell customers near freeways, highways, or flight paths to price that upgrade.

Airtightness & Weather Seal – The perimeter seals on this system form a continuous gasket line when closed. Each panel has its own gasket engagement, and the interlock between panels adds another layer. The result is minimal air intrusion at the joints. On a chilly December evening in Los Angeles, you won’t feel a draft running along the floor. We verify seal contact at install, because even a correctly manufactured door loses its rating if the frame isn’t square and plumb.

Waterproofing – The VLX 100 uses a combination of dual gaskets and a slight threshold slope to direct rain water away from the interior. The AAMA 812 low-expansion foam sealant we apply to every perimeter joint creates a secondary water line. Los Angeles gets occasional heavy rain; the door can handle it. For exposed openings like rooftop decks or hillside patios facing storm directions, we verify drainage path before and after install.

Wind Resistance – The reinforced aluminum frame and stainless steel rollers in the VLX 100 track system are designed for local wind loads. Doors installed in Los Angeles high-rise or canyon locations face gust patterns that differ from flat inland areas. The frame is rated to handle standard local climate requirements, and our installers anchor the header and jambs so the system doesn’t flex or rattle in Santa Ana-like winds.

Security & Hardware – A bifold door with weak hardware is a liability. The VLX 100 uses multi-point locking between panels and positive engagement at the top and bottom tracks. Switch to laminated glass for impact resistance, which adds real security value. In homes with ground-level access in Los Angeles neighborhoods, laminated glass is one of our most requested upgrades. The track itself sits low to the floor, so there’s minimal toe-kick height and no clumsy threshold to trip over.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is the most requested color in Los Angeles right now, especially in modern farmhouse or industrial-style builds. Pure White blends into stucco walls and suits Spanish or traditional exteriors. Anodized Silver gives a clean, contemporary commercial aesthetic, while Bronze and Champagne suit mid-century or warm-toned exteriors. Teak Wood finish mimics the look of timber folding doors without the maintenance, which makes sense in high-UV Los Angeles exposure where real wood fades and cracks.

For glass, Clear maximizes natural light at the lowest price point. Low-E is the standard energy upgrade, especially for southern or western exposures. Tempered is required in many Los Angeles building code applications for door glass. Laminated adds impact resistance and sound dampening. Gray Tint and Black Tint control heat and glare in direct-sun locations like an unobstructed Hollywood Hills view. The retractable screen option keeps bugs out on cool canyon evenings without a permanent mesh blocking the view.

Installation by Meridian Windows & Doors in Los Angeles

We install every VLX 100 to the AAMA 2400/2410 standard. That means a written process, not a best guess. Our Los Angeles installation crew begins with a pre-install inspection of the rough opening: checking width, height, diagonal square, and header support. We measure, re-measure, and verify the opening can carry the weight of a multi-panel aluminum door without deflection.

On install day, we set the frame level, plumb, and square before attaching anything permanently. A bifold door that’s even slightly out of level will bind mid-track. We shim and anchor per factory requirements. Then we apply AAMA 812 low-expansion foam sealant around the entire perimeter, including under the sill, to prevent air and water migration. Flashing details follow the drainage path of the wall assembly, whether that’s stucco, siding, or concrete. After the panels are hung and adjusted, we run a water test on the sill and check panel alignment across the full track. The job ends with a clean workspace and a walkthrough of how the hardware operates.

Why this matters: if a bifold door is installed incorrectly, the manufacturer warranty is void. Tracks shift, hinges bind, and water finds its way in. You don’t see the problem at installation, you see it a year later. Our Los Angeles installation record exists precisely so you don’t inherit that situation. We’ve installed folding door systems in single-story ranch homes in the Valley, modern glass boxes in the hills, and condos near downtown, each with unique building access and code considerations. We handle it.

Frequently Asked Questions – VLX 100 Bifold / Folding Door

What is the lead time for the VLX 100 Bifold / Folding Door?

Most VLX 100 orders for Los Angeles projects take 4 to 8 weeks from confirmed order to delivery, depending on glass type, finish, and the number of panels. Laminated glass and custom finishes sometimes add 2 weeks. We give you a written lead time at quote so you can plan around it. Call (817) 686-2228 and we’ll check current factory lead times while you’re on the phone.

Does the VLX 100 qualify for energy tax credits?

Potentially. The VLX 100 with Low-E glass meets the thermal performance thresholds set by many energy efficiency programs, but qualification depends on the specific glass package and your Los Angeles property’s eligibility. We don’t guess. We’ll provide the NFRC performance data sheet for the configuration you choose so your tax professional can verify. Call (817) 686-2228 to get the right documentation.

What warranty comes with the Bifold / Folding Door?

The VLX 100 carries a manufacturer warranty through ViewLux covering frame and hardware defects. The warranty is activated only when installation is performed by an authorized partner, which Meridian Windows & Doors is in Los Angeles. The warranty covers manufacturing issues; it does not cover installation errors, which is another reason professional installation matters. We’ll review exact terms before you sign.

Can I customize the size?

Yes. The VLX 100 is made to your opening, not the other way around. Widths reach up to 20 feet across 2 to 6 panels. Height is based on panel weight and structural limits, which we verify against your opening. In Los Angeles homes with non-standard opening dimensions, this is where the product shines. You’re not limited to three or four pre-set sizes. We measure, confirm the feasibility, and order exactly what your space needs.

How do I maintain aluminum frames?

Wipe the frames with mild soap and water twice a year to remove dust and salt. Los Angeles coastal homes should clean more often, especially during Santa Ana season when debris and dry air carry dirt into the tracks. Keep the track clear of sand and small rocks. Inspect the rollers annually. If you hear grinding or feel resistance, stop using the door and call us. A small adjustment now prevents a roller replacement later.

Get a Quote – VLX 100 Bifold / Folding Door in Los Angeles

We make it simple: you call, we schedule a free on-site measurement at your Los Angeles home, you get a written quote with the exact size, finish, glass type, and installation cost. No vague ballpark, no change orders later. Call (817) 686-2228 to start your VLX 100 project or ask us anything about specs, lead times, or what it takes to pull a permit in Los Angeles.

Written by the team at Meridian Windows & Doors, authorized ViewLux installation partner serving Los Angeles, CA.
