When a home calls for glass walls that stretch 20 feet or more, standard patio sliders won’t cut it. The VLX 150 Heavy-Duty Sliding Door is built for exactly that job. We install this series across Los Angeles for homeowners who want uninterrupted sightlines, smooth operation on oversized panels, and hardware that won’t sag after five years of daily use. As an authorized ViewLux installation partner, Meridian Windows & Doors pairs this door with a level of install precision most general contractors can’t match. If you’re pricing a large-span slider in Los Angeles, call (817) 686-2228 and we’ll walk you through what this door costs for your opening size.

Call (817) 686-2228

Product Overview – VLX 150 Heavy-Duty Sliding Door

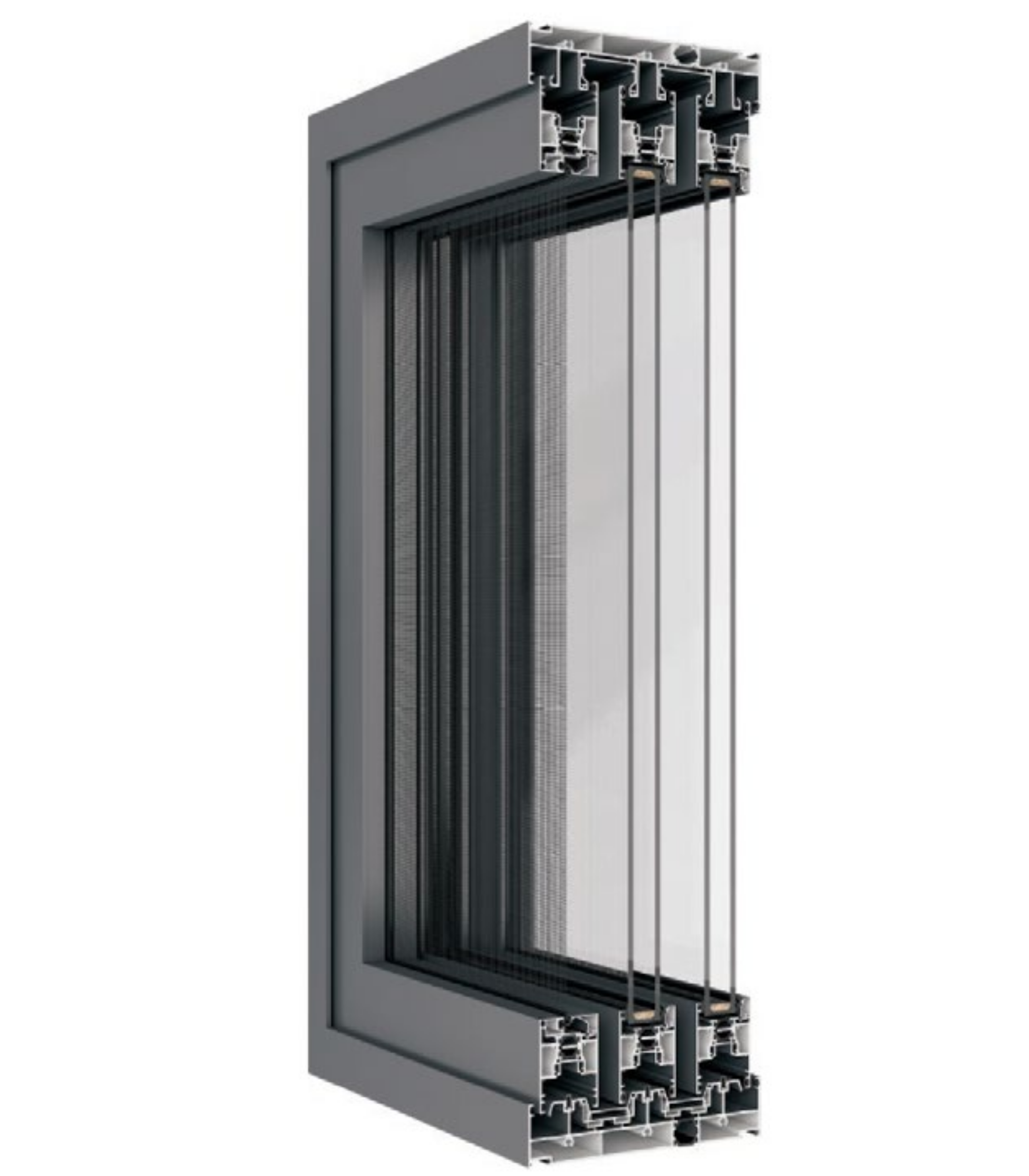

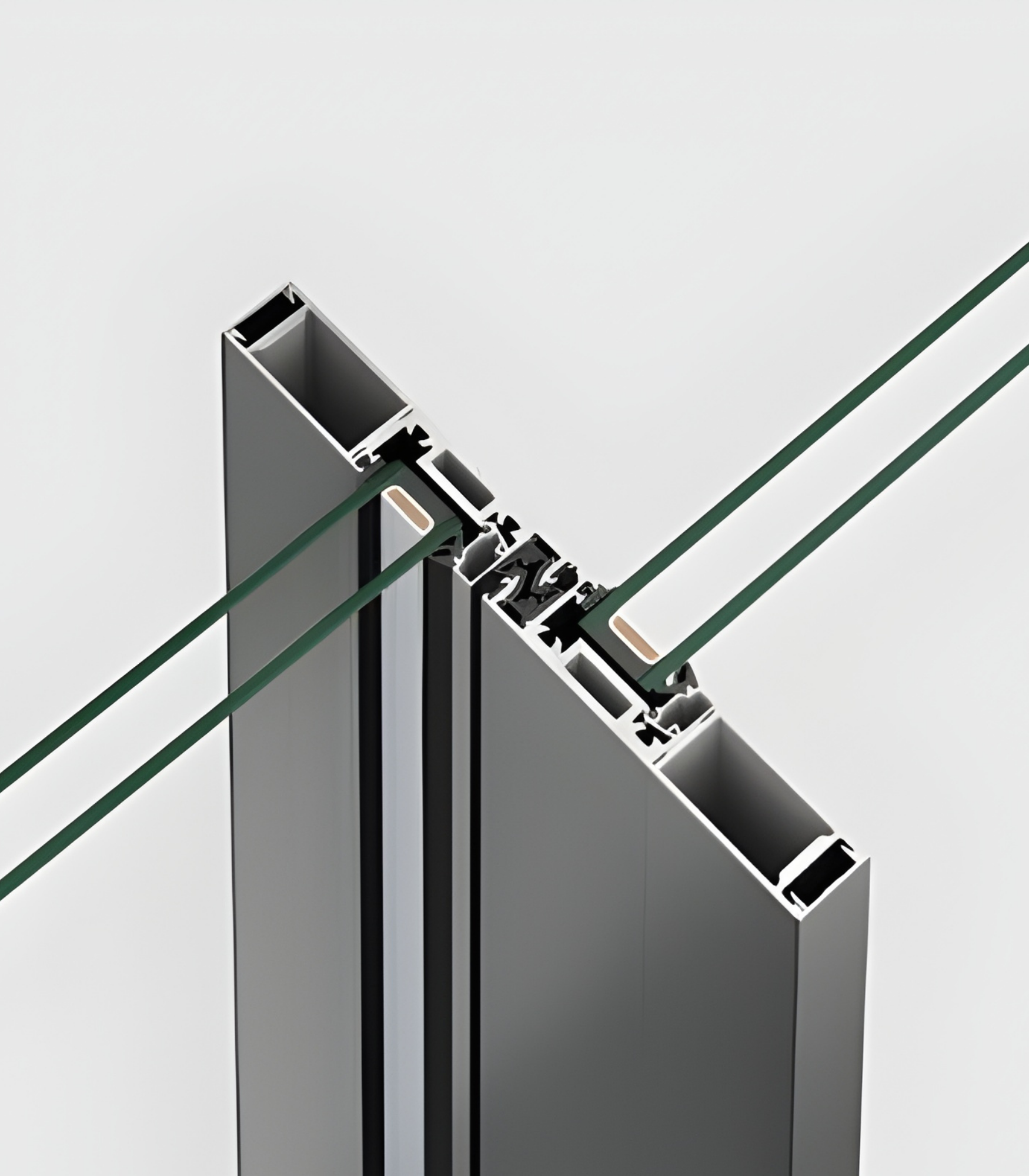

The VLX 150 is a strength-focused large-span aluminum slider built around one idea: bigger openings shouldn’t mean flimsier doors. Where lesser systems flex and bind when panels exceed 12 or 14 feet, the VLX 150 holds its geometry. The frame is extruded aluminum with a wall thickness of 0.118 inches and a profile width of 2.95 inches, which is a substantial cross-section by any standard. That mass allows spans of up to 24 feet wide, depending on configuration and glass selection.

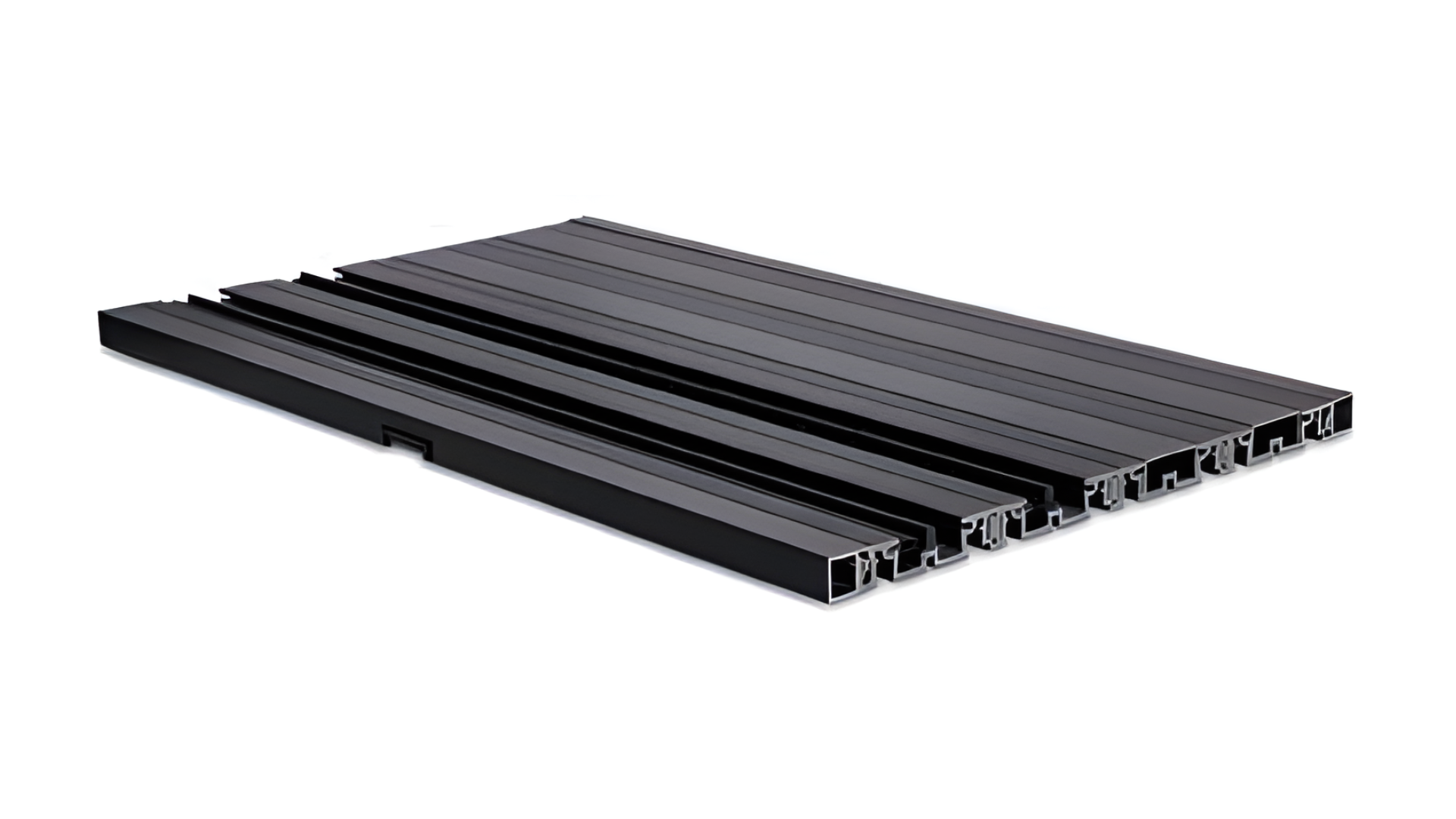

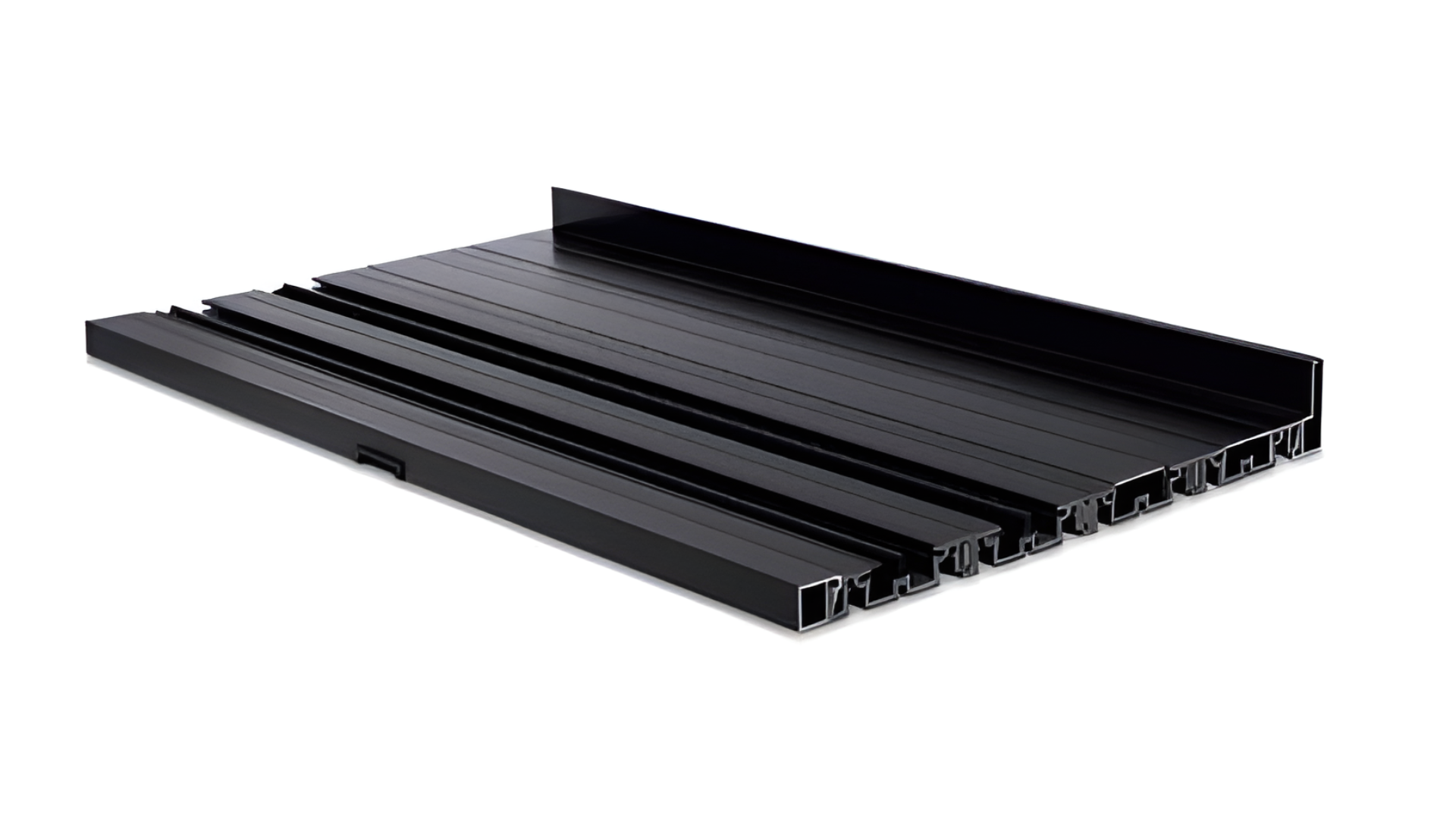

Architecturally, this door suits the indoor-outdoor living style Los Angeles homes are known for. Think Mid-Century ranch houses in Sherman Oaks, glass-box moderns in the Hollywood Hills, and bluff-top properties in Pacific Palisades where the Pacific Ocean is the view. The hardware is stainless steel throughout, not zinc-plated mild steel, which matters in coastal Los Angeles air where salt mist accelerates corrosion on lesser components. Multi-track configurations in 2-Track, 3-Track, and 4-Track layouts let you choose between fewer panels with wider glass or more panels that stack cleanly to one side. We regularly spec the 3-track version for openings in the 12 to 16 foot range in Los Angeles, where the balance of stack depth and glass width hits the sweet spot.

Technical Specifications

All glass is available in insulated configurations. Aluminum frames ship factory-finished in any of the six standard colors listed above, with custom color matching available on request.

Performance Features

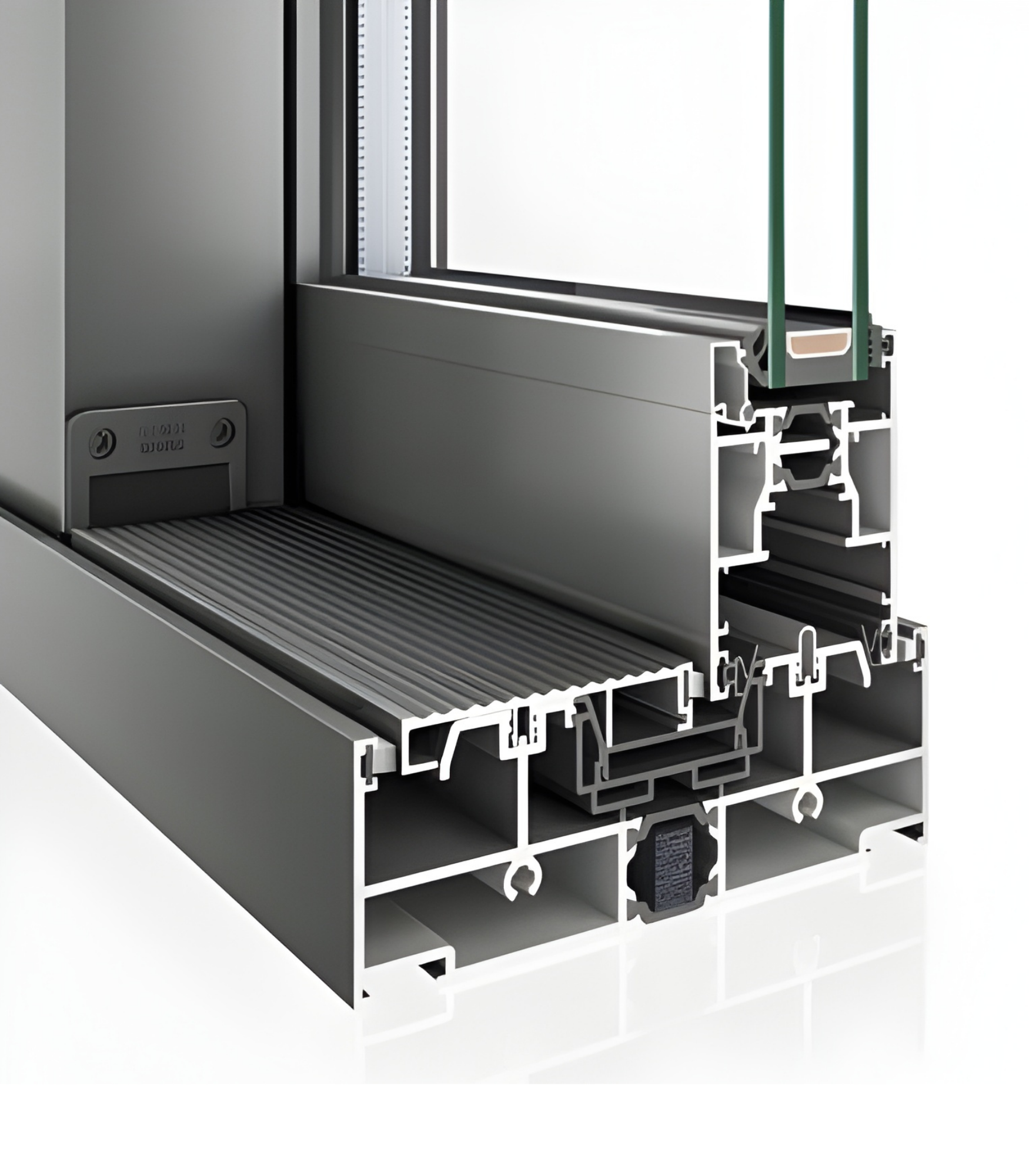

Thermal Efficiency – The VLX 150 uses a polyamide thermal break between the interior and exterior aluminum profiles, which interrupts conductive heat transfer through the frame. This is how you get an NFRC-rated energy performance on an all-aluminum door rather than the thermal bridge you’d get from a non-broken commercial extrusion. We pair that with Low-E insulated glass units tuned for the Los Angeles climate, where the priority is rejecting solar heat gain during July afternoons in the Valley.

Acoustic Performance – Laminated glass is the single biggest lever for sound reduction on this door. We recommend it for any Los Angeles install where the door faces a busy street, a canyon with amplified traffic noise, or flight paths into Burbank or LAX. Insulated laminated units bring meaningful STC improvement over single-pane tempered glass.

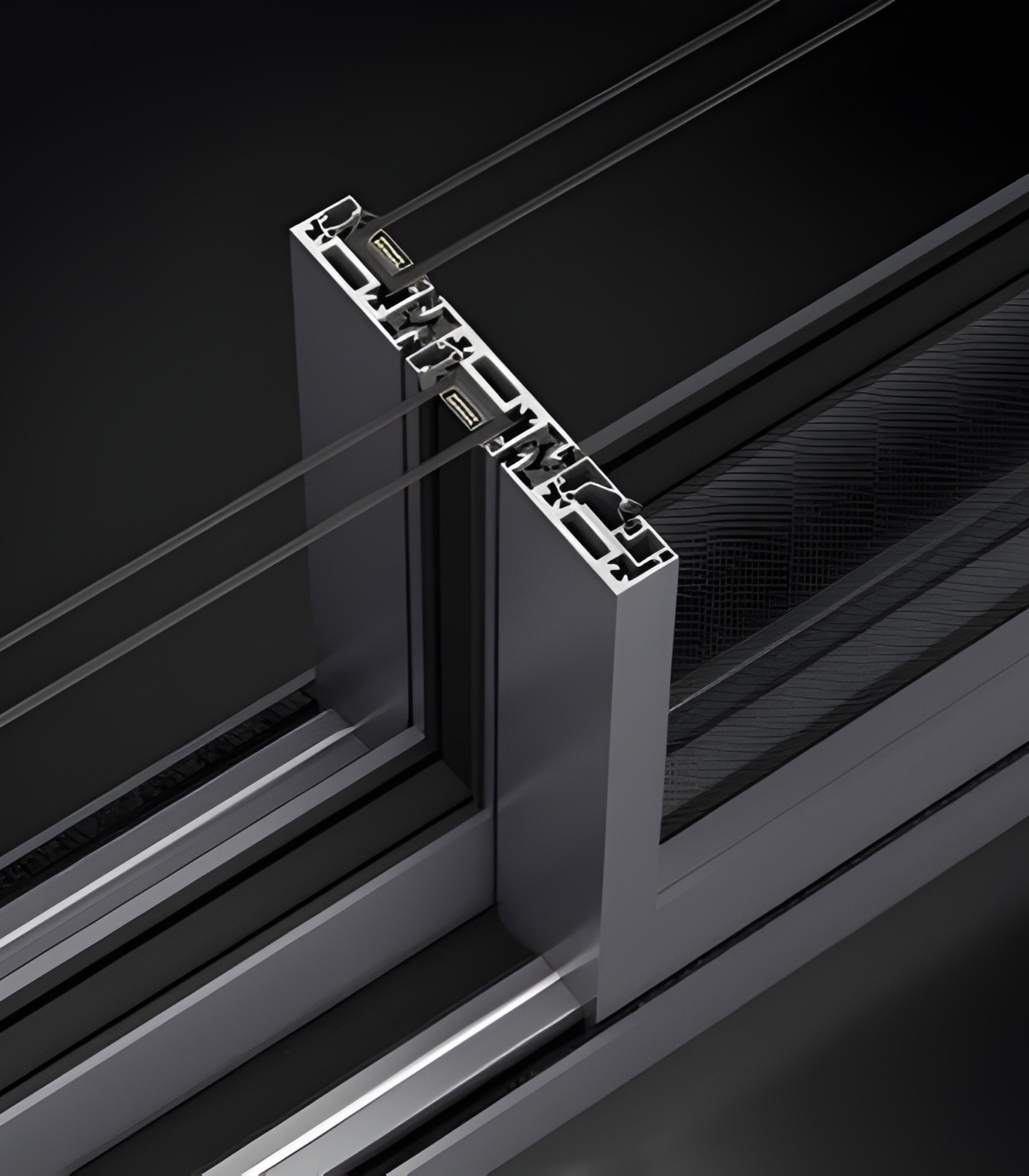

Airtightness & Weather Seal – The sliding panels seat against full-perimeter gaskets with interlocking meeting stiles rather than relying on brush weatherstripping alone. On a warm Santa Ana day in Los Angeles, you’ll feel zero air movement along the stiles even with the door closed. Properly sealed installs also keep the fine dust that blows during Santa Ana winds from building up inside your track.

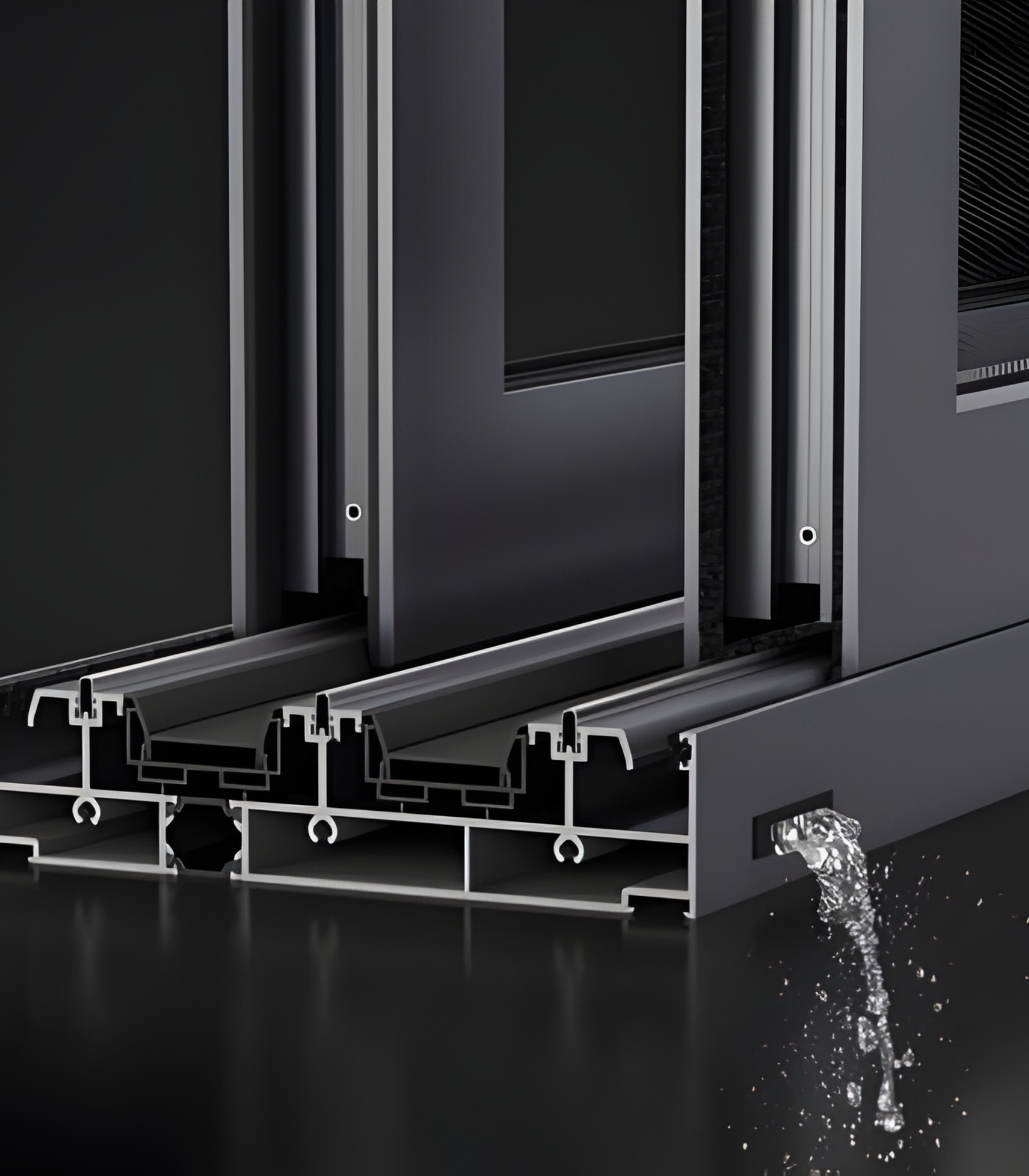

Waterproofing – This door’s sill design is built to shed water to the exterior through a sloped and drained channel. On installs in Los Angeles, where winter rains can arrive in dramatic bursts rather than steady drizzles, we seal all perimeter joints with AAMA 812 low-expansion foam and back it with a water test before we consider the job done.

Wind Resistance – The VLX 150 is wind-load rated for the exposure conditions we see across Los Angeles, including ridgelines and canyon passes where wind consistently exceeds the basic code minimum. We verify the calculated design pressure for your specific opening before ordering, so the door is never under-specified for the site.

Security & Hardware – Stainless steel rollers ride on adjustable bearing assemblies rated for panels well over 400 pounds. Multi-point locking hardware engages at the stile and header, not just a single latch at the center. We also offer laminated security glass, which holds together under impact rather than shattering into large dangerous shards.

Color & Glass Options

You get six standard finish choices on the VLX 150. Premium Black is the dominant choice for modern Los Angeles homes and it reads sharp against white stucco or exposed concrete. Pure White disappears into light-colored interiors, which makes it a fit for Spanish Revival and Mediterranean styles. Anodized Silver favors commercial-leaning lofts and industrial builds. Bronze lands somewhere between black and brown, which works well on traditional canyon homes. Champagne brings warmth without heavy color and pairs nicely with limestone and travertine. Teak Wood is a wood-grain powder-coat finish that gives a warmer, almost architectural-timber look without any maintenance.

For glass, Clear maximizes transparency and is the budget baseline. Low-E is the practical default for Los Angeles because it cuts solar heat gain without darkening the view. Tempered glass is code-required in doors and provides break safety. Laminated glass adds sound dampening, UV protection, and security hold-together performance. Gray Tint and Black Tint are aesthetic choices that also reduce glare and solar load, with Black Tint offering the strongest shading for west-facing openings that catch brutal late-afternoon sun in Los Angeles.

Installation by Meridian Windows & Doors in Los Angeles

A door this heavy and this wide does not forgive sloppy installation. A VLX 150 panel can weigh several hundred pounds once glazed, and if the rough opening isn’t square, or the sill isn’t dead level, the panels will bind, the rollers will wear unevenly, and the locking hardware won’t line up. The manufacturer’s warranty assumes professional installation to AAMA standards. When we install the VLX 150 in Los Angeles, this is the sequence.

Our pre-install inspection verifies rough opening dimensions, checks the subfloor for level, and confirms the header is properly supported. We set the frame in a bed of shims and adjust until the sill is level in both directions and the jamb is plumb. Once the frame is set and anchored, we seal the entire perimeter joint with AAMA 812 low-expansion foam, which meets the air barrier and waterproofing requirements of AAMA 2400/2410 installation standards. Then we hang the panels, dial in roller height, and adjust the interlocking stiles until the panels close flush. A final water test verifies the sill drainage path. Only then do we caulk finish seams and clean up.

Los Angeles brings its own install nuances. Seismic considerations require proper anchoring, and we follow the engineering details rather than guessing. Coastal neighborhoods from Playa del Rey up through Malibu need corrosion-resistant fasteners and sealants on every hardware component. Hillside installs in places like Mount Washington or Echo Park need attention to drainage so storm water never pools against the track. If a contractor skips any of these steps, the door fails slowly over several years, and the homeowner eats the repair cost. That’s why Meridian Windows & Doors does the install, not a handyman.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

What is the lead time for the VLX 150 Heavy-Duty Sliding Door?
Lead time for the VLX 150 is typically 6 to 10 weeks from order confirmation, depending on current ViewLux production volume and whether your configuration includes custom sizing or finish options. Oversized laminated glass panels can push toward the longer end of that range. Call (817) 686-2228 and we’ll confirm the current production schedule before you commit.

Does the VLX 150 qualify for energy tax credits?
The door may qualify for energy tax credits if it meets the current Energy Star Most Efficient criteria for sliding glass doors, which depends on the glass package and your climate zone. Los Angeles falls in a South-Central zone where the bar is less demanding than the desert Southwest. We can spec Low-E glass with the right solar heat gain coefficient and U-factor for your orientation, and we’ll provide the NFRC documentation if your configuration qualifies.

What warranty comes with the Heavy-Duty Sliding Door?
ViewLux provides a manufacturer warranty on the frame, glass, and hardware, and it’s prorated in stages over the coverage period. The key condition is that the door must be installed per AAMA 2400/2410 standards by a qualified contractor. Meridian Windows & Doors is an authorized installation partner, so our installs keep the warranty intact. If a DIY or unqualified install fails, the warranty does not cover it.

Can I customize the size of the VLX 150?
Yes. The VLX 150 is engineered for each opening with a maximum span of 24 feet wide. Panel count, panel width, track configuration, and sill height are all adjusted to match your architectural drawings, which means it’s not an off-the-shelf door. That custom sizing is exactly why this door works so well in higher-end Los Angeles homes where every opening is different.

How do I maintain aluminum frames?
Wash the frames twice a year with mild soap and water. Clean the track with a vacuum and a damp cloth to remove grit before it gets ground into rollers. Rinse coastal Los Angeles installs more often; salt haze embeds into the powder coat over time if not washed off. Lubricate rollers once a year with a dry silicone spray. Never use abrasive pads or acidic cleaners on powder-coated finishes.

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Los Angeles

If you’re planning a large-span glass door in Los Angeles and want a real price, not a website ballpark, call Meridian Windows & Doors at (817) 686-2228. We’ll schedule a free on-site measurement, talk through track configuration, glass options, and finish choices, and give you a written line-item quote before you spend a dollar.
