VLX 100 Pivot Door

VLX 100 Pivot Door in Los Angeles, CA | Meridian Windows & Doors

The VLX 100 Pivot Door is a heavy-duty aluminum pivot door that rotates on a vertical center axis instead of traditional side hinges. That single engineering choice changes everything about how a home feels when you walk through the front entry. You get a door that can span up to 60 inches wide and 120 inches tall, carrying oversized glass panels that would overwhelm a standard hinge system. Meridian Windows & Doors is an authorized ViewLux installation partner, which means we handle the measurement, the install, and the warranty paperwork properly. If you’re in Los Angeles and considering this door, call (817) 686-2228 to talk specs, pricing, and your project timeline.

Call (817) 686-2228

Product Overview – VLX 100 Pivot Door

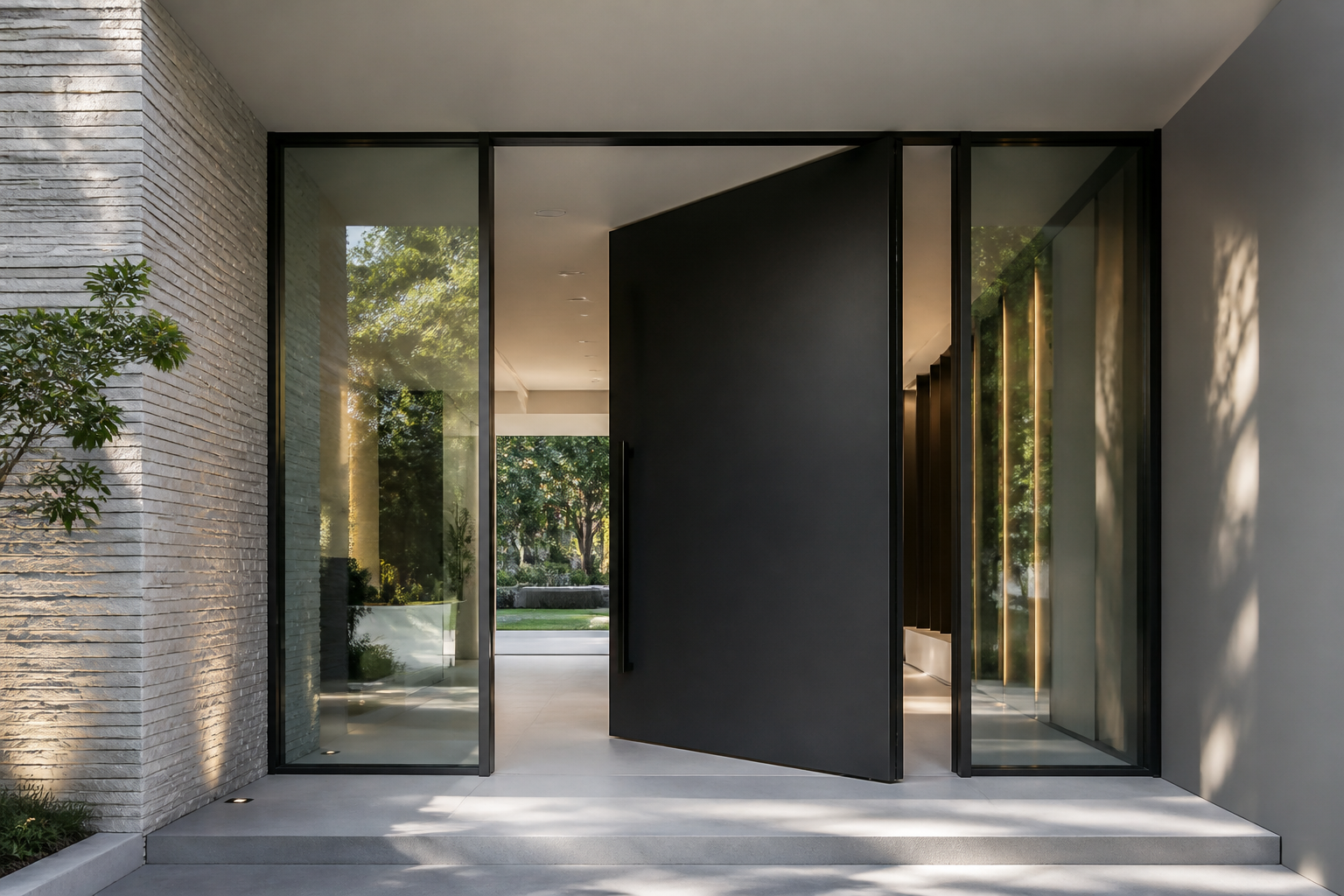

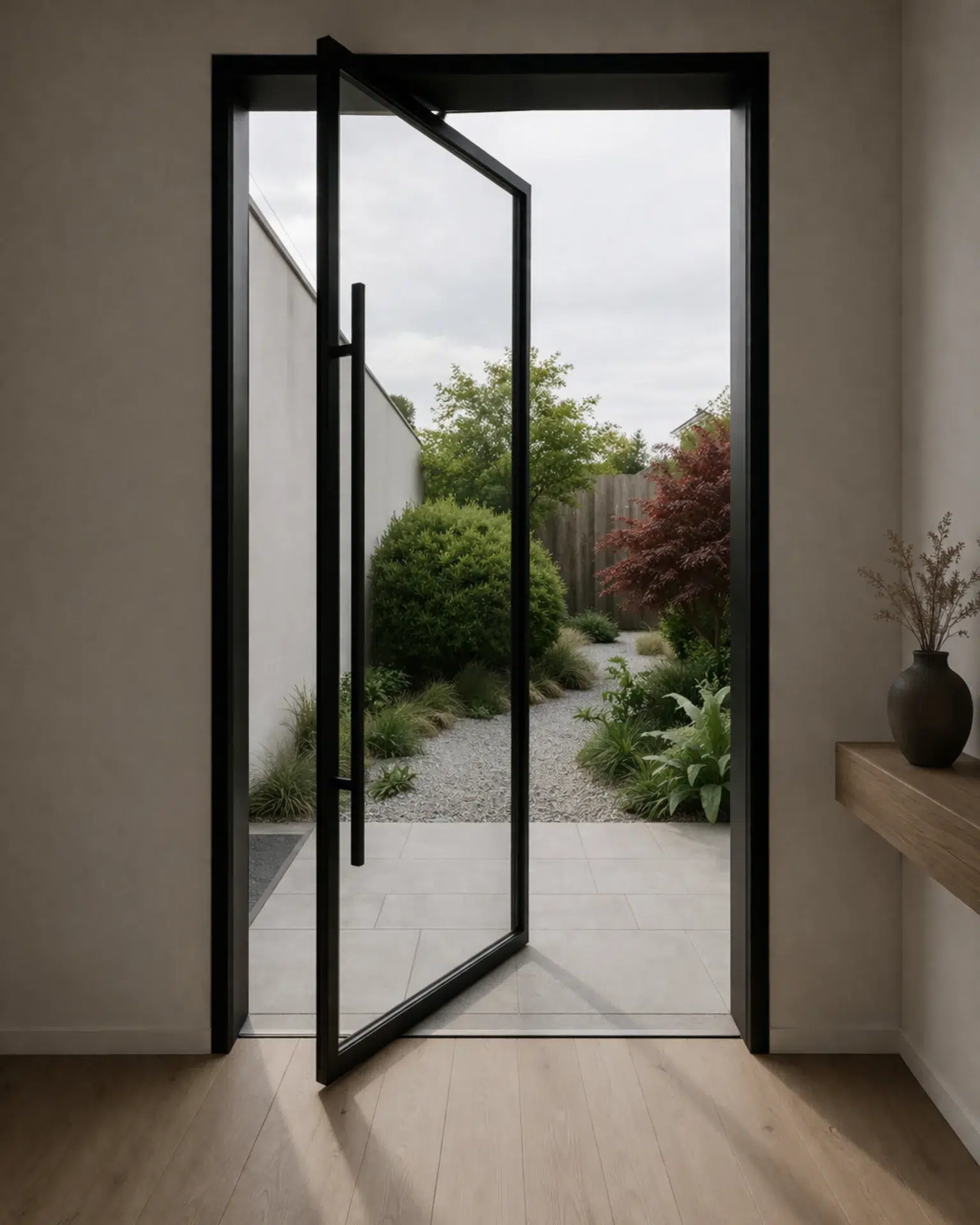

The VLX 100 is a statement piece disguised as a door. The pivot mechanism shifts the rotation point away from the frame edge and into the body of the panel itself, so the door swings with a weight and smoothness you don’t get from conventional hinges. Visually, the door reads as a floating plane of glass and aluminum. The frame stays minimal, and the swing arc is completely different: the door opens in a way that draws the eye, not just lets you through.

We see this door specified most often on modern and contemporary homes in Los Angeles neighborhoods like Silver Lake, Venice, Pacific Palisades, and the Hollywood Hills. Mid-century and Spanish-style houses also use the VLX 100 when the owner wants a contrast piece: a crisp, oversized entry against stucco or plaster, for example. The profile width is 2.56 inches, which is slender enough to stay elegant but substantial enough to carry the weight of the glass and the aluminum frame.

The wall thickness on the aluminum extrusion is 0.098 inches. That number matters because it’s one of the reasons this door doesn’t warp, rack, or sag. The panels are built to stay square over decades of daily use, including the sun exposure and temperature swings we deal with in Los Angeles. Buyers choose the VLX 100 when they want a front door that functions like a precision system, not a slab of wood that swells in winter humidity and sticks in August heat.

Meridian Windows & Doors has installed this series across Los Angeles County. We know how to size the panels, coordinate the glass spec, and set the pivot hardware so the door clears the floor properly and closes flush every single time. That last part isn’t automatic. It comes from measuring, leveling, and installing to AAMA standards, which we do on every job.

Technical Specifications

Here’s the VLX 100 Pivot Door broken down by the numbers, along with the options available through Meridian Windows & Doors in Los Angeles:

• Frame material: Extruded aluminum, wall thickness 0.098 inches
• Profile width: 2.56 inches
• Maximum panel span: Up to 60 inches wide by 120 inches tall
• Operation: Single pivot, vertical center axis
• Glass options: Clear, frosted, obscure, Low-E, tempered, laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Thermal performance: Thermal break technology, NFRC-rated
• Installation standard: AAMA 2400/2410 compliant
• Perimeter sealant: AAMA 812 low-expansion foam on all joints
• Impact option: Laminated impact-resistant glass available
• Wind loading: Rated for local Los Angeles climate requirements

Performance Features

Thermal Efficiency – The VLX 100 frame uses a thermal break that separates the interior and exterior aluminum faces. That break slows heat transfer through the metal, which is the weak point on most aluminum doors. Combined with Low-E glass, the door holds interior temperatures steadier in Los Angeles summers. NFRC-rated performance means the numbers are tested, not claimed.

Acoustic Performance – If you live near a busy street in Los Feliz, Westwood, or Culver City, sound control matters. The VLX 100’s sealed construction and laminated glass option cut down traffic noise, barking dogs, and street chatter. Laminated glass is the single best upgrade for sound reduction on this door.

Airtightness & Weather Seal – Every VLX 100 we install gets a continuous perimeter weather seal and AAMA 812 low-expansion foam on all joints. That foam fills gaps between frame and rough opening without distorting the frame, keeping conditioned air in and drafts out. The result is a front door that doesn’t whistle on windy days or leak air around the edges.

Waterproofing – A pivot door has to shed water differently than a hinged door because water runs down the full width of the panel. The VLX 100’s sill and seal system are designed to channel water away from the threshold, and our installers in Los Angeles test the seal path after every install. We don’t rely on caulk alone; the drainage is built into the system and installed to AAMA standards.

Wind Resistance – Los Angeles isn’t hurricane country, but we do get Santa Ana events and strong canyon winds in places like Topanga, Brentwood, and the foothill communities. The VLX 100 is wind-load rated for local climate requirements, meaning the panel and hardware won’t flex or flap in sustained gusts.

Security & Hardware – The pivot hardware on the VLX 100 is rated for the panel weight and daily use cycles. Tempered or laminated glass adds impact resistance. Laminated glass specifically holds together if struck, which makes forced entry much harder. The multi-point locking hardware keeps the door secured at multiple points along the frame, not just at a single latch.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is the most popular choice in Los Angeles right now, particularly on modern homes with black window frames. Pure White works on coastal properties and Spanish-style homes where the frame should fade into the stucco. Anodized Silver reads industrial and is popular in Arts District lofts and converted warehouses. Bronze and Champagne both carry warm metallic tones that suit mid-century and transitional homes from Pasadena to Sherman Oaks. Teak Wood is a wood-grain finish on aluminum, giving the warmth of timber without the maintenance headaches.

Glass selection changes both the look and the function. Clear glass maximizes your view and light. Frosted or obscure glass keeps privacy while still glowing with daylight, ideal for a front door on a busy street in Los Angeles. Low-E cuts heat gain and UV fade, which protects interior floors and furniture near the entry. Tempered is the standard safety glass that shatters into small pieces. Laminated adds impact resistance and acoustic damping, and we recommend it for anyone concerned with security or street noise.

Installation by Meridian Windows & Doors in Los Angeles

Here’s the honest truth: a pivot door is only as good as the install. The panel can be perfectly engineered at the factory, and a sloppy installation will still ruin it. Out-of-level floors, incorrectly set pivot points, or a frame that wasn’t shimmed square will cause binding, uneven gaps, and water intrusion. And when that happens, the manufacturer warranty doesn’t cover the repair, because the failure wasn’t in the product.

Meridian Windows & Doors installs every VLX 100 Pivot Door to AAMA 2400/2410 standards. That starts with a pre-install inspection of the rough opening. We check the floor for level and slope, because pivot doors sit on a bottom pivot that has to be set precisely relative to the finished floor. If the slab runs out of level, we correct the threshold and pivot placement before the panel ever goes in.

We set the frame level, plumb, and square, using shims at all anchor points and checking with a laser and a six-foot level as we go. Then we run AAMA 812 low-expansion foam along the entire perimeter joint between frame and rough opening. The foam fills voids, reduces air movement, and adds structural contact without bowing the aluminum. We flash and seal the exterior to direct water away from the opening, and we test the seal paths with water after the door is hung.

Los Angeles throws a few specific challenges at entry doors. Our building codes require proper anchoring for large door panels, and our older homes often have rough openings that are far from square. Termite damage, old stucco, and settling are all common here. Meridian Windows & Doors has been installing aluminum and glass entries across Los Angeles long enough to know how to handle those surprises without cutting corners or padding the change order. When we’re done, the door operates with one hand, closes flush, and stays sealed. We clean up the work area, haul off packaging, and walk you through the hardware and maintenance before we leave.

Frequently Asked Questions – VLX 100 Pivot Door

What is the lead time for the VLX 100 Pivot Door? The VLX 100 is built to order, so lead time varies by finish and glass selection but generally runs six to ten weeks from order confirmation to delivery at our Los Angeles shop. Custom sizing or unusual glass combos can extend that. Call (817) 686-2228 and we’ll check current production schedules.

Does the VLX 100 Pivot Door qualify for energy tax credits? The door may qualify for federal or local energy incentives depending on the glass package and whether the NFRC ratings meet the current program thresholds. Low-E glass is the key spec for efficiency. We can’t promise a specific credit amount, but we can provide the documentation you need to check with your tax professional.

What warranty comes with the VLX 100 Pivot Door? The VLX 100 carries a manufacturer warranty on the frame, finish, glass, and hardware, and Meridian Windows & Doors backs our installation workmanship as well. Improper installation voids the manufacturer warranty, which is why we install to AAMA 2400/2410 standards and stand behind our work in Los Angeles.

Can I customize the size of the VLX 100 Pivot Door? Yes, within the engineering limits. The panel can be built up to 60 inches wide and 120 inches tall. We measure your rough opening in Los Angeles, confirm the structural clearances, and order the panel to fit your exact opening rather than forcing a stock size into a space that doesn’t want it.

How do I maintain aluminum frames and pivot hardware? Clean the frame and glass with mild soap and water twice a year, and keep the bottom pivot clear of debris. Los Angeles dust and coastal salt air can build up over time, especially in beach communities like Playa del Rey or Manhattan Beach. If the door ever feels stiff or the gap drifts, don’t force it. Call (817) 686-2228 and our team will check the pivot and adjust it before a small problem turns into a warranty claim.

Get a Quote – VLX 100 Pivot Door in Los Angeles

If you’re planning a front entry, a remodel, or a ground-up build in Los Angeles, the VLX 100 Pivot Door deserves a close look. We’ll walk you through finish and glass combinations, measure your opening, and give you a written line-item quote. Call (817) 686-2228 to get started, or talk to our team about an on-site measurement in Los Angeles.

Written by the team at Meridian Windows & Doors, authorized ViewLux installation partner serving Los Angeles, CA.
