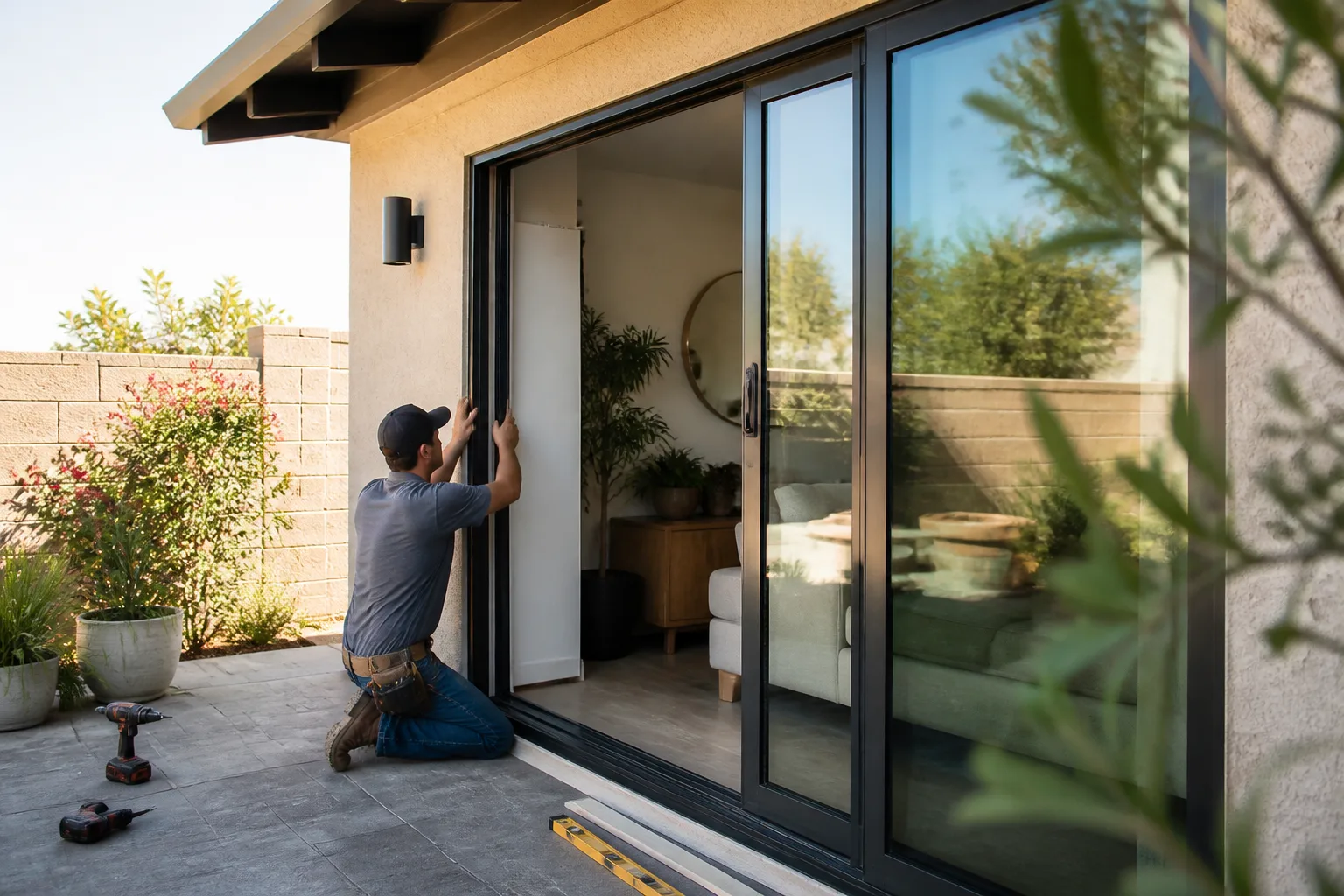

5 Mistakes to Avoid With Patio Door Installation

5 Mistakes to Avoid With Patio Door Installation

The five mistakes that generate the most patio door repair calls in Los Angeles are: a sill pan sloped toward the house, a rough opening out of plumb by more than 1/8 inch, fastening the frame before shimming the sill corner, specifying a door without a tested air infiltration rating near the coast, and skipping the operating clearance test before the crew leaves. Each one is preventable during installation and expensive to correct later. If you’d rather not sort through the details yourself, call (817) 686-2228 and we’ll spec the job properly from the start.

Mistake #1: The Sill Pan That Slopes Toward the House

The most expensive patio door installation mistake isn’t a bad threshold seal. It’s a sill pan that slopes toward the house instead of away from it. That’s a 15-minute fix during installation and roughly a $1,200 correction after drywall is in place, because the water damage travels under the subfloor before it ever shows up at the interior threshold.

A sill pan is the sloped, waterproof flashing that sits under the door unit and directs water that gets past the door outward, away from the rough opening. The correct specification is a minimum 1/8 inch per foot of outward slope. That’s not a preference. It’s the difference between water exiting the building envelope and water pooling against your rim joist.

In Los Angeles, where winter rain arrives in concentrated bursts, a backward-sloped pan fails slowly and silently. We’ve seen doors in Sherman Oaks that looked fine from the living room but had rotted framing underneath, because the pan was pitched a quarter inch the wrong way. The homeowner didn’t know until the door started binding and the flooring began to cup.

Before any door unit drops in, a level should sit on the pan with the bubble clearly off-center toward the exterior. If the bubble reads level or, worse, tilts toward the house, the pan gets corrected before the door ever touches it. Any crew that skips that check is gambling with your subfloor.

Mistake #2: Exceeding the Plumb and Level Tolerance

A patio door rough opening should be within 1/8 inch of plumb and level across an 8-foot span. That’s the tolerance. Exceed it, and the door doesn’t fail immediately. It fails within 18 to 24 months.

Here’s what happens. A sliding patio door panel can weigh 180 to 350 pounds depending on the glass package. That weight rides on two small rollers at the bottom of the panel. When the frame is even slightly out of plumb, the panel’s weight shifts off the rollers’ centerline. The rollers wear unevenly. The panel starts to drag. Within a year and a half, the door that glided open now takes a shoulder to move, and the lock doesn’t line up with the strike plate anymore.

In Los Angeles, this gets amplified in older homes from the 1950s and 60s where framing has settled. The existing rough opening might be a half-inch out of level, and that’s fine, but it has to be corrected with shims before the new door goes in. A crew that fastens the door into a crooked opening and calls it done is handing you a service call in two years.

The field practice that prevents this is boring and quick: check plumb and level at four points before a single screw goes in, and shim as needed. It adds 20 minutes to the install. It saves a roller replacement, a lock alignment, or a full frame reset down the road.

Mistake #3: Fastening the Frame Before Shimming the Sill Corner

There’s a sequence error we see on repair calls more than we should. A crew sets the door in the rough opening, drives fasteners through the jambs, and then shims the sill corners as an afterthought. That’s backwards.

The sill corners of a patio door frame carry load. When you fasten the jambs first, you lock the frame in place before the load path is established. Then the shims go in, but they’re not bearing the weight; the fasteners and the threshold are. Over time, the frame drops slightly at the corners. The door sags. The operating panel scrapes the track. The weep holes, which are supposed to drain water from the track, sit below the exterior sill line and stop draining.

The correct order is to set the door on shims at the sill corners first, verify level and plumb, and only then begin fastening the frame into the rough framing. The load transfers to the framing, not the threshold.

We pulled a Therma-Tru sliding patio door out of a house in Long Beach last spring where exactly this had happened. The install was about three years old. The threshold had deflected enough that the door was hanging up on the track, and the homeowner had already replaced the rollers once. The problem wasn’t the door. It was the sequence of the original install. The replacement went in shim-first, and it operates fine.

Mistake #4: Ignoring Air Infiltration Ratings Near the Coast

Los Angeles is not one climate. A house in Westchester or Playa del Rey sits in marine layer wind pressure that a house in Pasadena never feels. Builders know this. Many replacement door installers don’t.

A patio door should carry a tested air infiltration rating of 0.3 cfm/ft² or lower per AAMA 101, the industry standard for window and door performance. That number tells you how much air leaks through the closed door under a specific wind load. Cheaper doors, or doors spec’d for inland conditions, can test well above that. You won’t feel a draft on a calm day. You’ll feel it in January when the Santa Ana winds hit, or on a foggy June morning when the marine layer pushes moisture against the west-facing wall.

The problem isn’t comfort. It’s moisture. Air leaking through the door carries humidity into the wall cavity, and over years, that humidity finds the framing. In coastal Los Angeles, this shows up as paint bubbling at the interior trim or a musty smell near the threshold. By the time it’s visible, the damage is done.

We spec doors from manufacturers like ES Windows and ECO Window Systems for coastal jobs because they’re engineered with the kind of tight air and water performance that holds up against marine-layer pressure. The right product for a given home isn’t the one that happens to be in stock. It’s the one tested for the conditions that home actually lives in.

Mistake #5: Skipping the Operating Clearance Test

Every patio door manufacturer has a warranty. Most of those warranties cover factory defects, but only if the defect is documented before substantial completion. Once the job is signed off and the crew is gone, a factory defect becomes a service claim, and service claims move much slower.

The operating clearance test is simple. Open and close the door ten times. Full travel, both directions. Check the lock engagement. Check the handle operation. Check that the panel doesn’t rub the frame anywhere in its travel. That’s it. It takes five minutes and it catches almost every factory defect that matters: a bowed panel, a misaligned lock, a roller that binds, a screen that doesn’t track.

We do this on every install from the Meridian Windows & Doors home page to the final job. It’s standard practice. And it’s the thing homeowners tell us no previous contractor ever did. A crew that installs the door, opens it once, and walks back to the truck hasn’t verified anything.

If a defect shows up during that ten-cycle test, it gets documented, photographed, and addressed through the manufacturer before the job closes. That’s covered. If it shows up six months later and was never documented, you’re negotiating a warranty claim on a door the manufacturer can no longer inspect. Document everything before the crew leaves.

Key Takeaways

• The sill pan must slope outward at least 1/8 inch per foot, verified with a level before the door unit drops in.
• The rough opening must be within 1/8 inch of plumb and level across 8 feet, or roller wear and lock misalignment show up within two years.
• Shim the sill corners first, then fasten the frame. Reverse the sequence and the frame drops.
• Near the LA coast, specify a door with an air infiltration rating of 0.3 cfm/ft² or lower per AAMA 101.
• Open and close the door ten times before the crew leaves. Factory defects are covered under warranty only if documented before substantial completion.

When to Call a Pro

If you’re reading this while planning a DIY patio door replacement, here’s the honest version: setting a 300-pound sliding panel into a rough opening that’s within tolerance, on a pan that drains correctly, with the frame shimmed in the right sequence, is not a two-person Saturday job. It’s a job that goes wrong in ways you won’t see until water is where it shouldn’t be, or the door starts binding 18 months later.

That’s where a professional install earns its keep. We run background-checked, uniformed technicians on every call, the price goes on paper before any work starts, and every installation is covered by our 365-Day Done Right Promise in writing. If it fails within that year, we come back at no charge. No fine print about labor exclusions.

If you’re in Los Angeles and planning a patio door installation in Los Angeles, we’ll spec the right door for your home’s conditions and install it with the sequence and tolerances described above.

Related Services in Los Angeles

Patio door work often happens alongside window work, especially in older Los Angeles homes where one project reveals the condition of the other. If the door replacement has you looking at the windows next to it, we handle window replacement in Los Angeles and window installation in Los Angeles with the same written-price, written-guarantee approach.

The Bottom Line

A patio door installation has a shorter punch list than a window installation, but every item on that list carries real consequence. The sill pan drainage, the rough opening tolerance, the shimming sequence, the air infiltration spec, and the operating clearance test are five opportunities to get it right or five ways to buy a problem you won’t discover until the warranty has aged out.

If you’re in Los Angeles and need help with a patio door, Meridian Windows & Doors offers free estimates. Call (817) 686-2228 and we’ll put the price on paper before any work starts, spec the right door from one of eight manufacturer lines including Mr-Glass and Therma-Tru, and stand behind the installation for a full year in writing.

Frequently Asked Questions

What is a sill pan and why does its slope matter?

A sill pan is the sloped, waterproof flashing installed under a patio door to direct water that gets past the door outward, away from the house framing. It must slope at least 1/8 inch per foot toward the exterior. A sill pan that slopes toward the house channels water into the subfloor, where it causes rot that’s invisible until the flooring and threshold start to fail. Call (817) 686-2228 if you suspect your sill pan was installed incorrectly.

How far out of plumb can a patio door rough opening be?

The acceptable tolerance is 1/8 inch in 8 feet. Beyond that, a sliding panel’s weight shifts off the rollers’ centerline, causing uneven roller wear, drag, and lock misalignment within 18 to 24 months. Older Los Angeles homes often have rough openings well outside that tolerance, which is why shimming before fastening is non-negotiable. For an exact assessment of your opening, call (817) 686-2228.

What air infiltration rating should I look for in a patio door near the coast?

For homes in coastal Los Angeles neighborhoods like Playa del Rey, Westchester, or Long Beach, specify a patio door with a tested air infiltration rating of 0.3 cfm/ft² or lower per AAMA 101. This reduces the moisture that leaks through the door under marine-layer wind pressure and protects the wall cavity from slow, invisible damage. We spec ES Windows and ECO Window Systems for many coastal jobs because they perform well against that standard.

What should I check before the patio door installation crew leaves?

Open and close the door ten times, full travel in both directions. Check the lock engagement, the handle operation, and whether the panel rubs the frame anywhere. Factory defects documented during this test are covered under warranty. Defects discovered after substantial completion become service claims and are much harder to get approved. Every Meridian install includes this ten-cycle test before the job closes. For a free estimate on a patio door installation, call (817) 686-2228.

Written by Elliot Vance, Owner at Meridian Windows & Doors, serving Los Angeles since 2009.
